Installation [09/2015 - ]: Procedure

1. Install the front speed sensor to the steering knuckle with the bolt.

   Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

   NOTE:

   • Keep the tip of the front speed sensor and installation hole free of foreign matter.
   • Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt.
   • After installing the front speed sensor to the steering knuckle, make sure that there is no clearance between the front speed sensor stay and steering knuckle. Also make sure that no foreign matter is stuck between the parts.
   • Do not twist the front speed sensor wire harness when installing it.

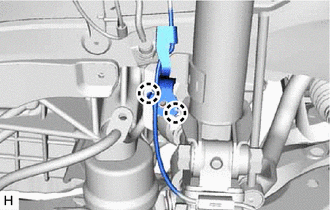

2. Engage the 2 claws to install the sensor clamp.
   NOTE:

   Do not twist the front speed sensor wire harness when installing it.

3. Engage the 2 claws to install the sensor clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not twist the front speed sensor wire harness when installing it.

4. Install the front flexible hose with the bolt.

   Torque: 18.8 N.m (192 kgf/cm, 14 ft.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

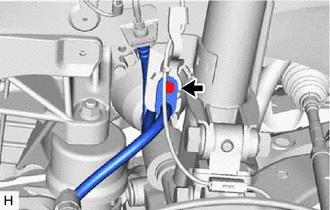

5. Install the sensor clamp with the bolt.

   Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

   NOTE:

   Do not twist the front speed sensor wire harness when installing it.

6. Engage the 2 sensor clamps.
   NOTE:

   Do not twist the front speed sensor wire harness when installing it.

7. Connect the front speed sensor connector.
8. Return the front fender splash shield sub-assembly to its original position.

1. Install the front skid control sensor wire to the front shock absorber assembly with the bolt.

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

2. Connect the connector to the front shock absorber assembly.
   NOTE:

   Do not twist the front skid control sensor wire harness when installing it.

3. Engage the 2 claws to install the sensor clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not twist the front skid control sensor wire harness when installing it.

4. Install the front flexible hose with the bolt.

   Torque: 18.8 N.m (192 kgf/cm, 14 ft.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

5. Install the sensor clamp with the bolt.

   Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

   NOTE:

   Do not twist the front skid control sensor wire harness when installing it.

6. Engage the 2 sensor clamps.
   NOTE:

   Do not twist the front skid control sensor wire harness when installing it.

7. Connect the front skid control sensor wire connector.
8. Return the front fender splash shield sub-assembly to its original position.

1. Install the front speed sensor to the steering knuckle with the bolt.

   Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

   NOTE:

   • Keep the tip of the front speed sensor and installation hole free of foreign matter.
   • Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt.
   • After installing the front speed sensor to the steering knuckle, make sure that there is no clearance between the front speed sensor stay and steering knuckle. Also make sure that no foreign matter is stuck between the parts.
   • Do not twist the front speed sensor wire harness when installing it.
2. Connect the front speed sensor connector.

1. Install the front fender splash shield sub-assembly with the screw and clip.

Refer to PROCEDURE - Step 1

Refer to TEST MODE PROCEDURE [09/2015 - 08/2019] , or refer to TEST MODE PROCEDURE [08/2019 - ]
