Components [09/2015 - ]

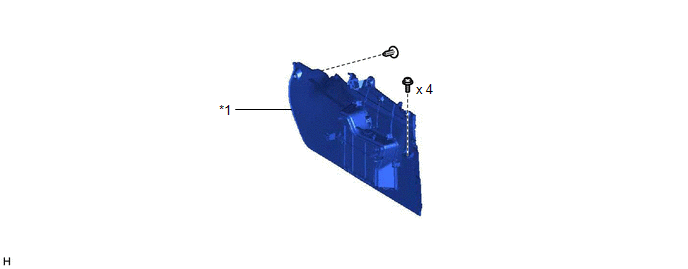

Fig 1: Yaw Rate And Acceleration Sensor Replacement Components (1 Of 2)
GTY636433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT NO. 2 CONSOLE BOX INSERT - -

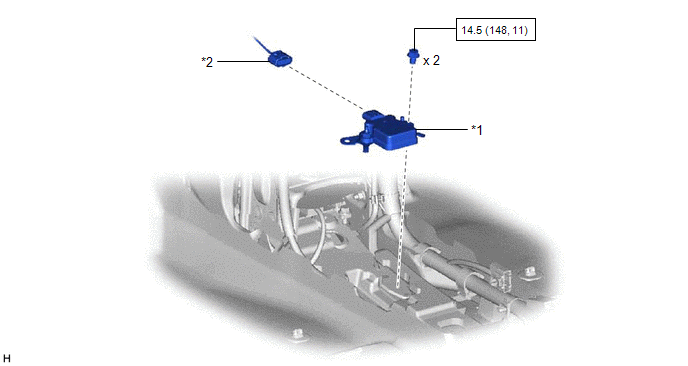

Fig 2: Yaw Rate And Acceleration Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY624732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 YAW RATE SENSOR ASSEMBLY *2 CONNECTOR
N.m (kgf/cm, ft.lbf): Specified torque - -
