Components [09/2015 - ]

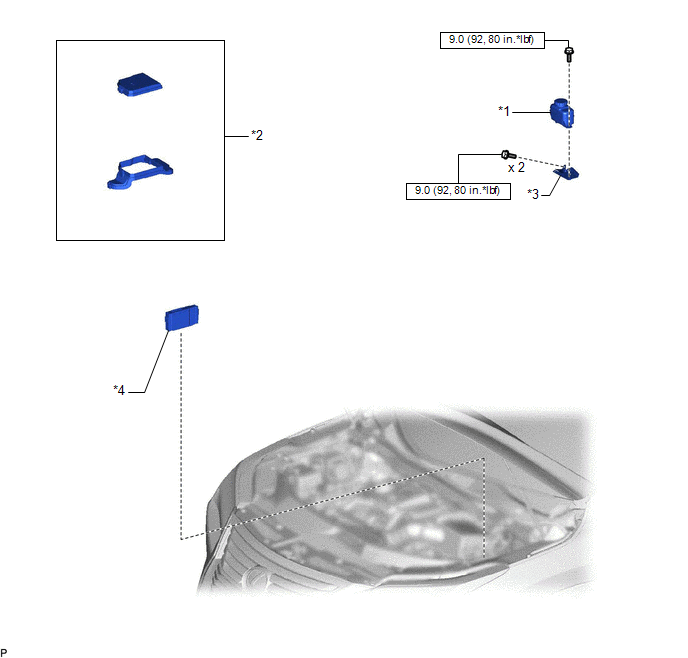

Fig 1: Integration Relay Replacement Components With Torque Specifications
GTY673429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY *2 NO. 1 RELAY BLOCK COVER
*3 RESERVOIR BRACKET *4 SEMICONDUCTOR POWER INTEGRATION ECU
N.m (kgf/cm, ft.lbf): Specified torque - -
