Components [09/2015 - ]

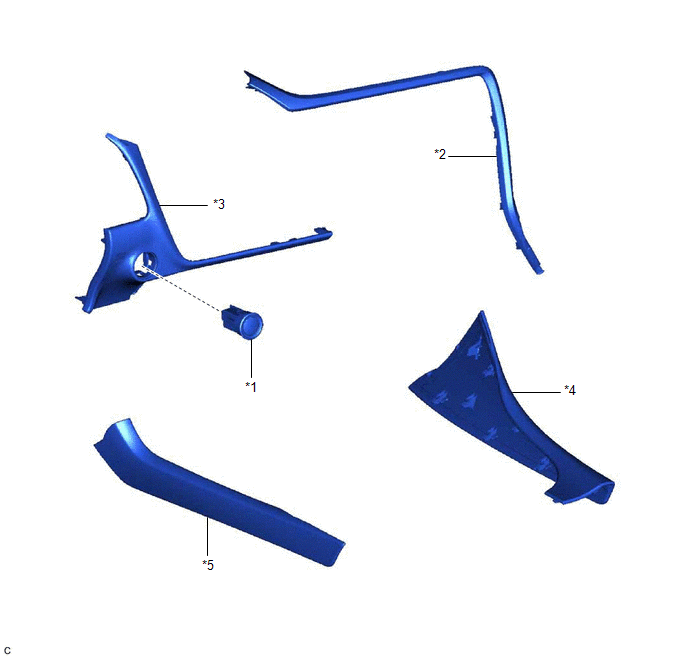

Fig 1: Engine Switch Replacement Components
GTY680384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ENGINE SWITCH *2 INSTRUMENT CLUSTER FINISH PANEL ORNAMENT
*3 LOWER INSTRUMENT FINISH PANEL SUB *4 LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL
*5 LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL - -
