Components [09/2015 - ]

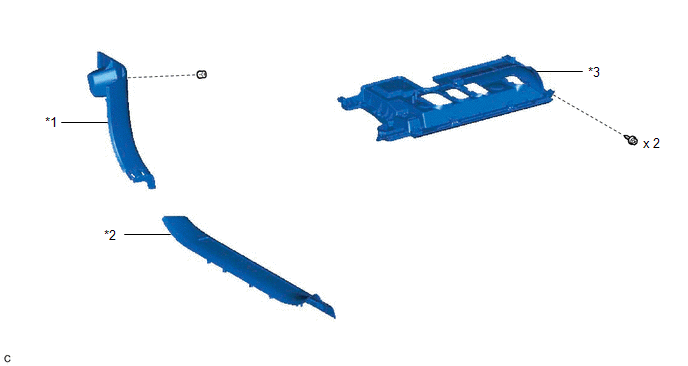

Fig 1: Accelerator Pedal Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COWL SIDE TRIM BOARD	*2	FRONT DOOR SCUFF PLATE LH
*3	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	-

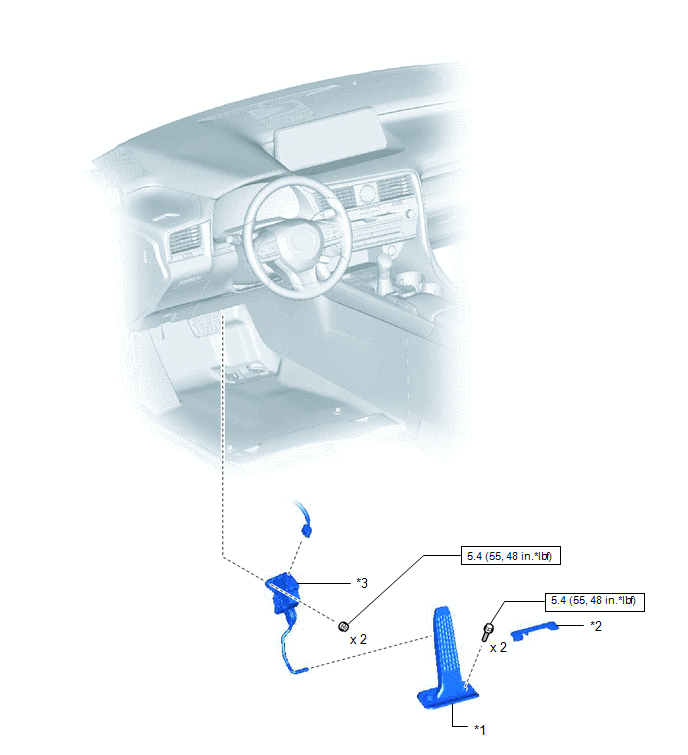

Fig 2: Accelerator Pedal Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	ACCELERATOR PEDAL	*2	ACCELERATOR PEDAL PAD
*3	ACCELERATOR PEDAL SENSOR ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
