Components [09/2015 - ]

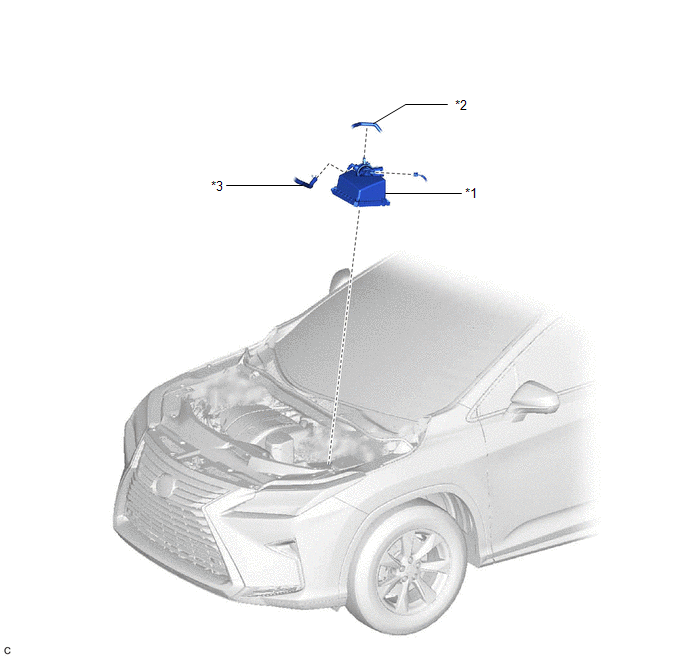

Fig 1: Throttle Body Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AIR CLEANER CAP WITH AIR CLEANER HOSE	*2	NO. 1 FUEL VAPOR FEED HOSE
*3	NO. 2 VENTILATION HOSE	-	-

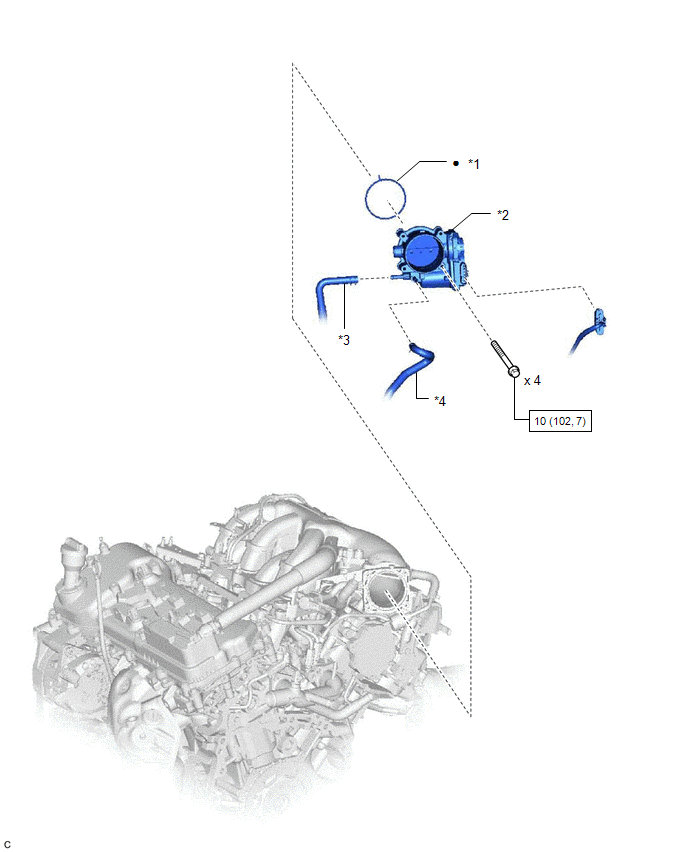

Fig 2: Throttle Body Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	THROTTLE BODY GASKET	*2	THROTTLE BODY WITH MOTOR ASSEMBLY
*3	NO. 2 WATER BY-PASS HOSE	*4	NO. 3 WATER BY-PASS HOSE
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
