Components [10/2015 - ]

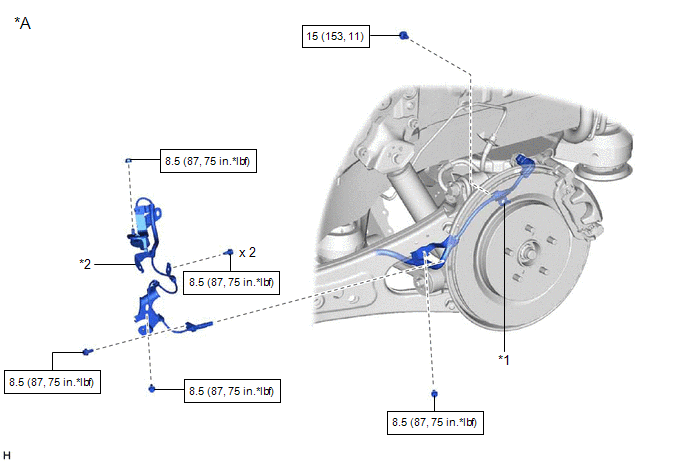

Fig 1: Rear Speed Sensor (For AWD) Replacement Components With Torque Specifications (1 Of 4)
GTY646809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for LH Side w/o AVS - -
*1 NO. 2 PARKING BRAKE WIRE ASSEMBLY *2 REAR SPEED SENSOR LH
N*m (kgf*cm, ft.*lbf): Specified torque - -

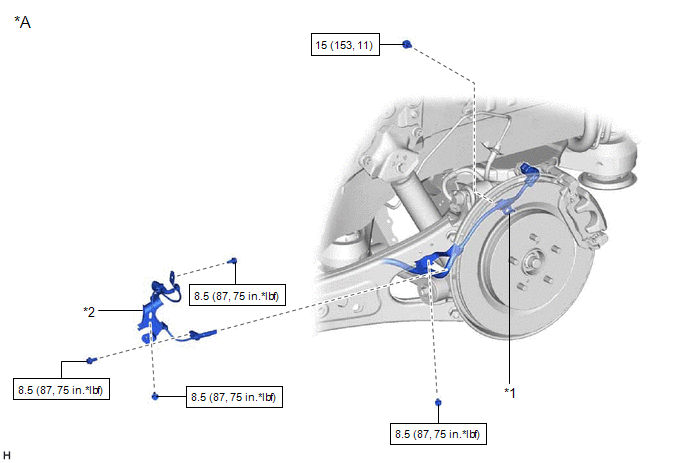

Fig 2: Rear Speed Sensor (For AWD) Replacement Components With Torque Specifications (2 Of 4)
GTY615035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for LH Side w/ AVS - -
*1 NO. 2 PARKING BRAKE WIRE ASSEMBLY *2 REAR SPEED SENSOR LH
N*m (kgf*cm, ft.*lbf): Specified torque - -

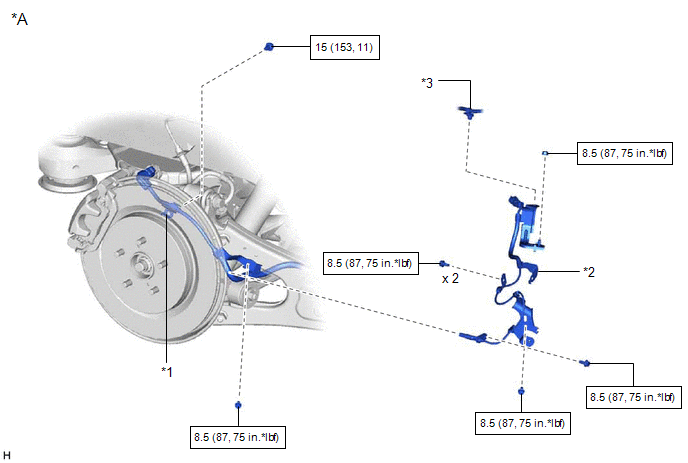

Fig 3: Rear Speed Sensor (For AWD) Replacement Components With Torque Specifications (3 Of 4)
GTY669377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for RH Side w/o AVS - -
*1 NO. 1 PARKING BRAKE WIRE ASSEMBLY *2 REAR SPEED SENSOR RH
*3 WIRE HARNESS - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

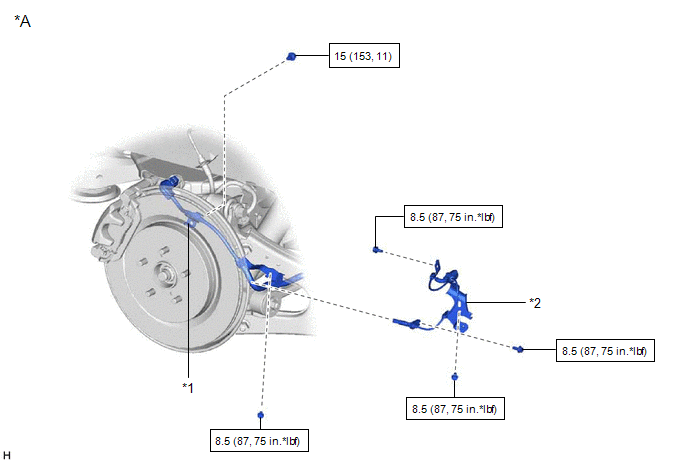

Fig 4: Rear Speed Sensor (For AWD) Replacement Components With Torque Specifications (4 Of 4)
GTY678028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for RH Side w/ AVS - -
*1 NO. 1 PARKING BRAKE WIRE ASSEMBLY *2 REAR SPEED SENSOR RH
N*m (kgf*cm, ft.*lbf): Specified torque - -
