Components [03/2018 - ]

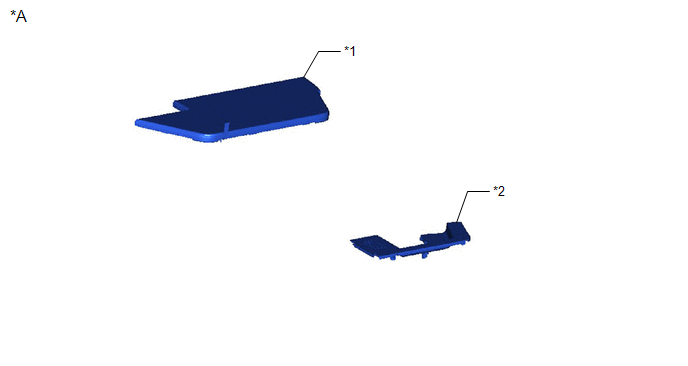

Fig 1: Injector Driver Replacement Components (1 Of 3) [03/2018 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Rear No. 2 Seat	-	-
*1	DECK BOARD ASSEMBLY	*2	REAR DECK FLOOR BOX

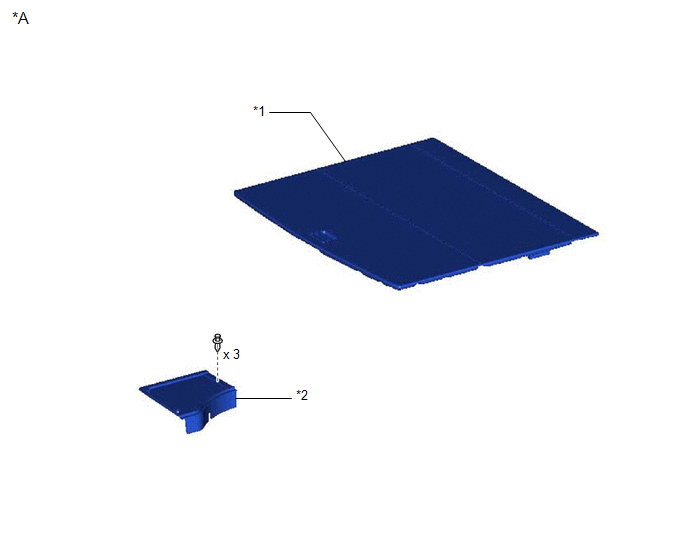

Fig 2: Fuel Injector Replacement Components (2 Of 3) [03/2018 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Rear No. 2 Seat	-	-
*1	REAR NO. 4 FLOOR BOARD	*2	BATTERY SERVICE HOLE COVER

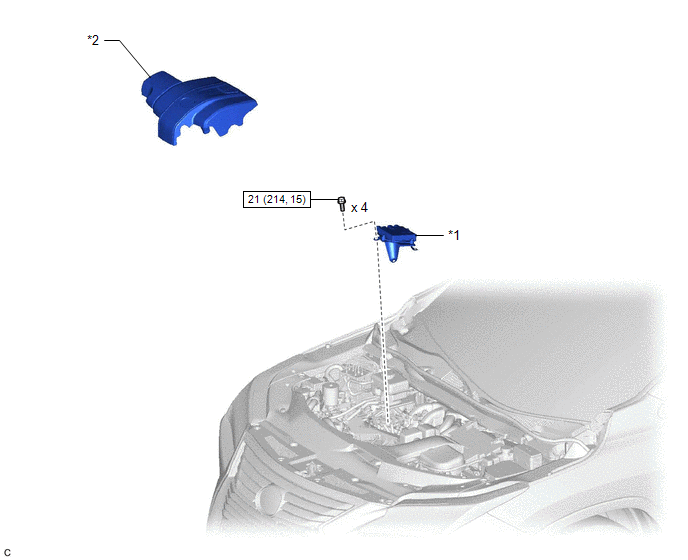

Fig 3: Injector Driver Replacement Components With Torque Specifications (3 Of 3) [03/2018 - ]

Callout	Description	Callout	Description
*1	INJECTOR DRIVER	*2	V-BANK COVER SUB-ASSEMBLY
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
