Components [03/2018 - ]

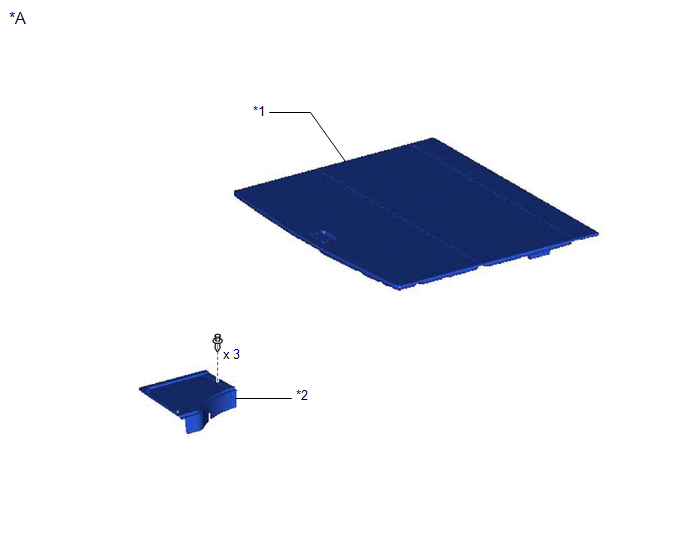

Fig 1: ECM Replacement Components [03/2018 - ] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Rear No. 2 Seat	-	-
*1	DECK BOARD ASSEMBLY	*2	REAR DECK FLOOR BOX

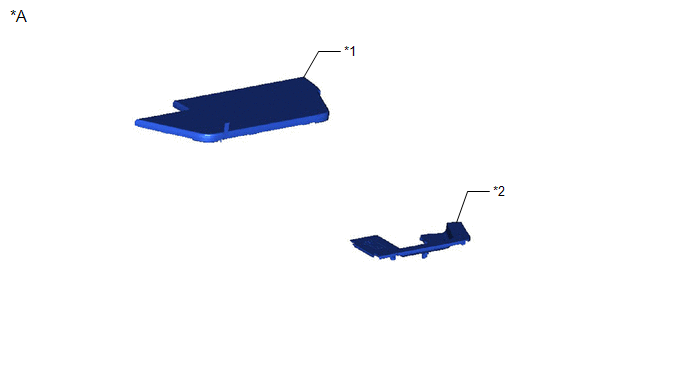

Fig 2: ECM Replacement Components [03/2018 - ] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Rear No. 2 Seat	-	-
*1	REAR NO. 4 FLOOR BOARD	*2	BATTERY SERVICE HOLE COVER

Fig 3: ECM Replacement Components With Torque Specifications [03/2018 - ] (3 Of 3)

Callout	Description	Callout	Description
*1	ECM ASSEMBLY	*2	NO. 1 ECM BRACKET
*3	NO. 2 ECM BRACKET	*4	COOL AIR INTAKE DUCT SEAL
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
