Installation [03/2018 - ]: Procedure
- INSTALL NO. 2 ECM BRACKET
- Install the No. 2 ECM bracket to the ECM assembly with the 2 bolts.
Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)
- Install the No. 2 ECM bracket to the ECM assembly with the 2 bolts.
- INSTALL NO. 1 ECM BRACKET
- Install the No. 1 ECM bracket to the ECM assembly with the 2 bolts.
Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)
- Install the No. 1 ECM bracket to the ECM assembly with the 2 bolts.
- INSTALL ECM ASSEMBLY

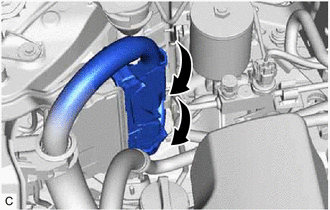

- Connect the 2 ECM assembly connectors and lower the 2 levers.NOTE:
- When connecting the ECM assembly connectors, make sure that the connecting parts of the ECM assembly connectors are free of dirt, water or other foreign matter.
- Be sure to securely connect the ECM assembly connectors.
- Install the bolt and nut.
Bolt
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
Nut
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
NOTE:If the ECM assembly has been struck or dropped, replace it.
- Connect the 2 ECM assembly connectors and lower the 2 levers.
- INSTALL COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 4 [08/2016 - 08/2019] , or refer to PROCEDURE - Step 4 [08/2019 - ]
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [03/2018 - 08/2019] , or refer to INITIALIZATION [08/2019 - ]
- INSTALL BATTERY SERVICE HOLE COVER (w/ Rear No. 2 Seat)
Refer to PROCEDURE - Step 59
- INSTALL REAR NO. 4 FLOOR BOARD (w/ Rear No. 2 Seat)
Refer to PROCEDURE - Step 60
- INSTALL REAR DECK FLOOR BOX (w/o Rear No. 2 Seat)
Refer to PROCEDURE - Step 53
- INSTALL DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)
Refer to PROCEDURE - Step 55
- PERFORM INITIALIZATION
Refer to PRECAUTION [08/2016 - 08/2019] , or refer to PRECAUTION [08/2019 - ]
