Components [08/2019 - ]

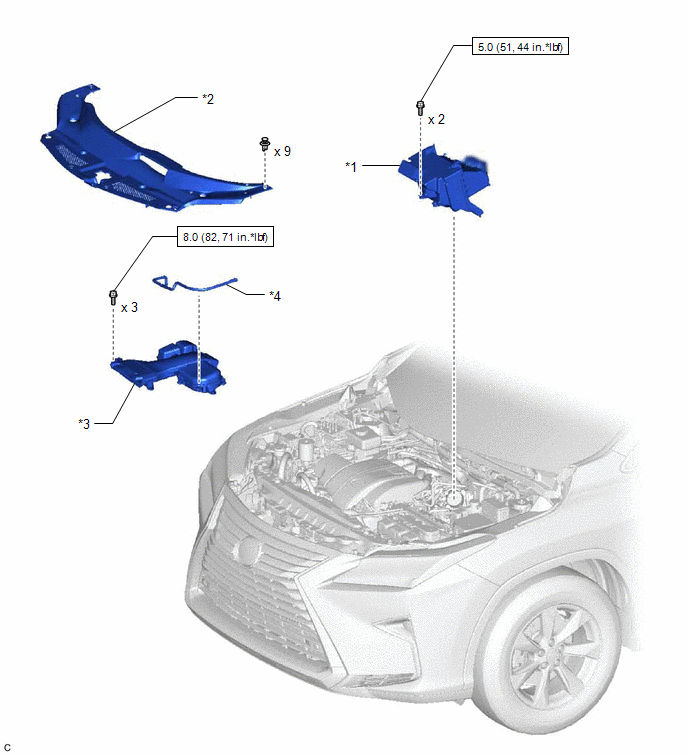

Fig 1: Throttle Body Replacement Components With Torque Specifications [08/2019 - ] (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	OUTER COWL TOP PANEL SUB-ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

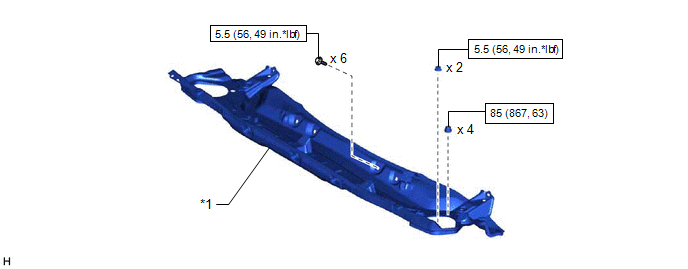

Fig 2: Throttle Body Replacement Components [08/2019 - ] (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

FRONT WHEEL OPENING EXTENSION PAD LH

NO. 3 ENGINE UNDER COVER

Fig 3: Throttle Body Replacement Components With Torque Specifications [08/2019 - ] (3 Of 4)

Callout	Description	Callout	Description
*1	AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE	*2	COOL AIR INTAKE DUCT SEAL
*3	INLET AIR CLEANER ASSEMBLY	*4	INVERTER DRAIN HOSE
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

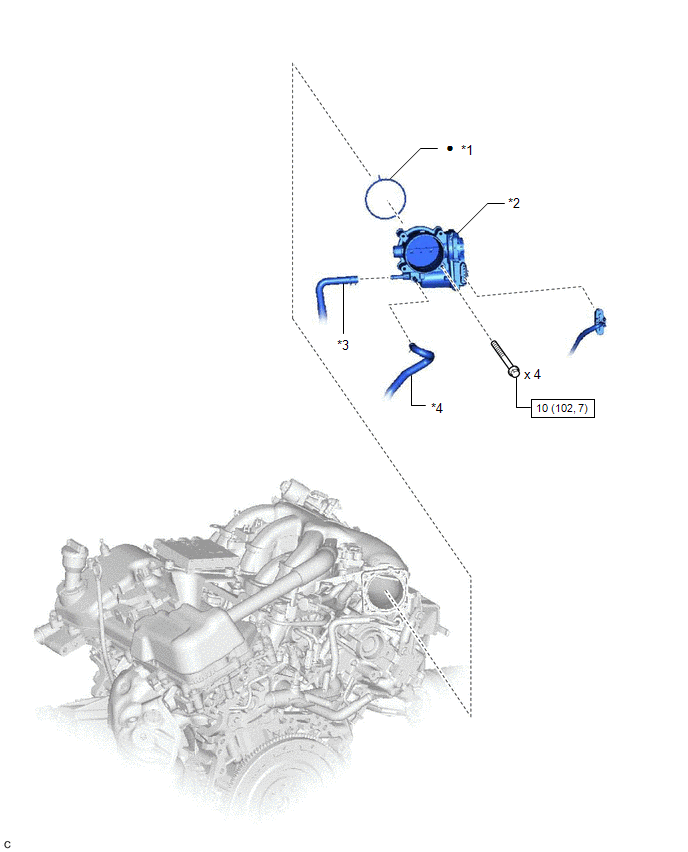

Fig 4: Throttle Body Replacement Components With Torque Specifications [08/2019 - ] (4 Of 4)

Callout	Description	Callout	Description
*1	THROTTLE BODY GASKET	*2	THROTTLE BODY WITH MOTOR ASSEMBLY
*3	NO. 2 WATER BY-PASS HOSE	*4	NO. 3 WATER BY-PASS HOSE
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
