Components [10/2015 - ]

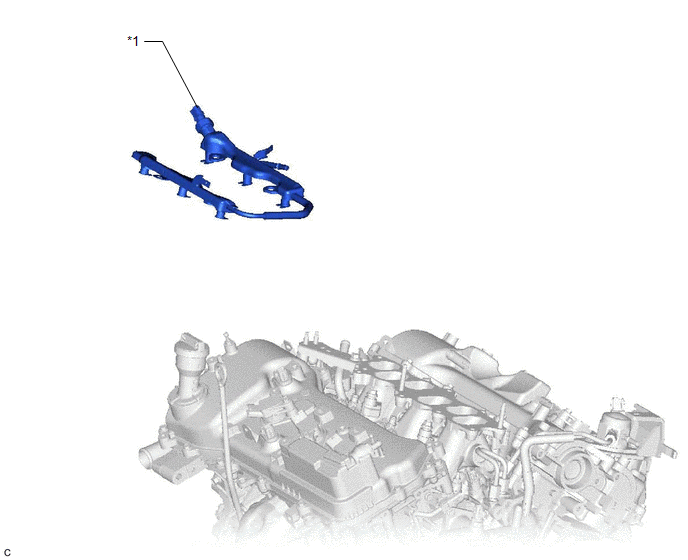

Fig 1: Fuel Pressure Sensor Replacement Components
GTY633413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FUEL DELIVERY PIPE SUB-ASSEMBLY (FUEL PRESSURE SENSOR) - -
