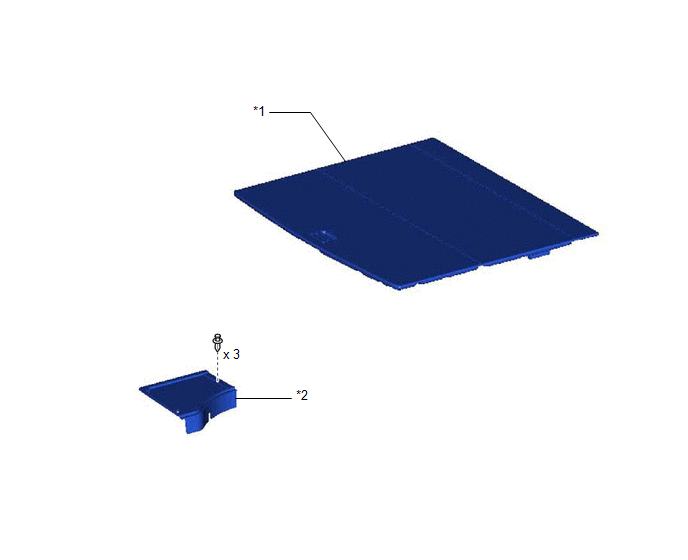

Components [10/2015 - 03/2018]
| *1 | DECK BOARD ASSEMBLY | *2 | REAR DECK FLOOR BOX |
Fig 2: Injector Driver Replacement Components With Torque Specifications (2 Of 2) [10/2015 - 03/2018]
| Callout | Description | Callout | Description |
| *1 | INJECTOR DRIVER | *2 | V-BANK COVER SUB-ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
