Parts Location [10/2018 - ]: Illustration

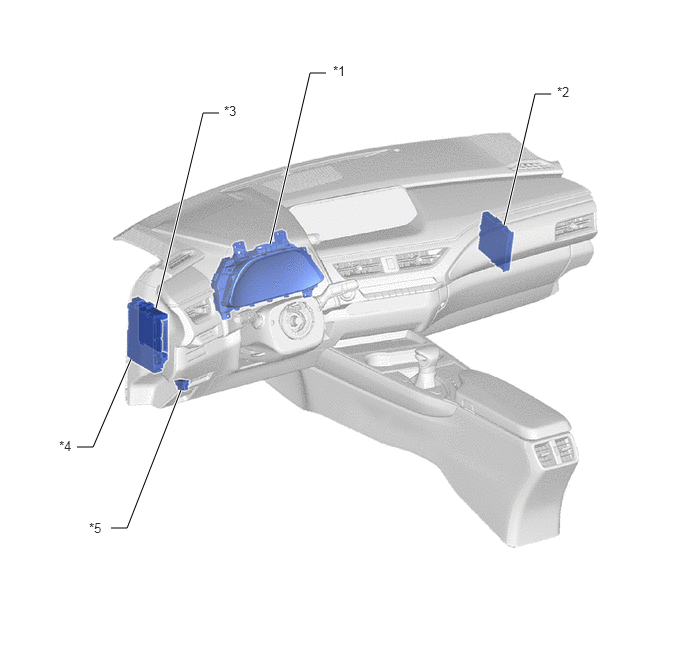

| *1 | COMBINATION METER ASSEMBLY | *2 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - DOOR FUSE - DOOR R/L FUSE - DOOR R/R FUSE - ECU-B NO. 2 FUSE - POWER FUSE |
| *5 | DLC3 | - | - |

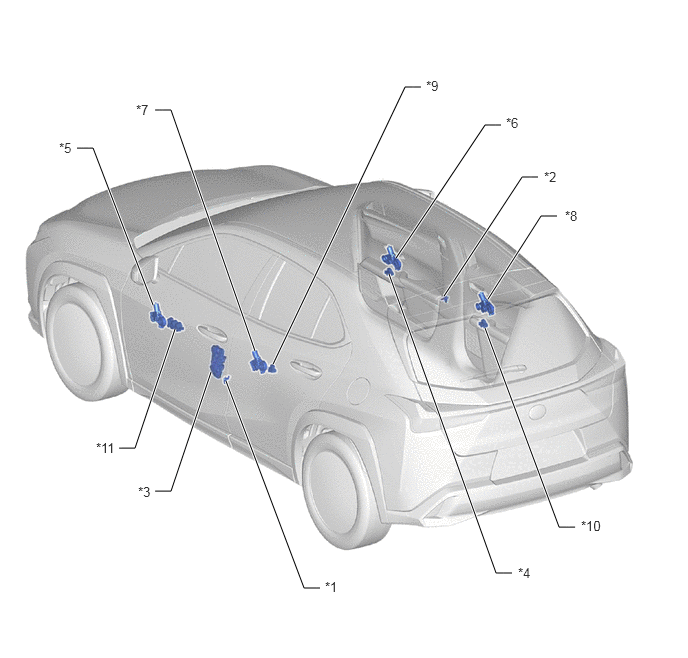

| *1 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *3 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH | *4 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Driver Door) |
| *5 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front Passenger Door) | *6 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear LH Door) |
| *7 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear RH Door) | *8 | POWER WINDOW REGULATOR SWITCH ASSEMBLY |
| *9 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY (for LH Door) | *10 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY (for RH Door) |
| *11 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY | - | - |
