Components [07/2022 - ]

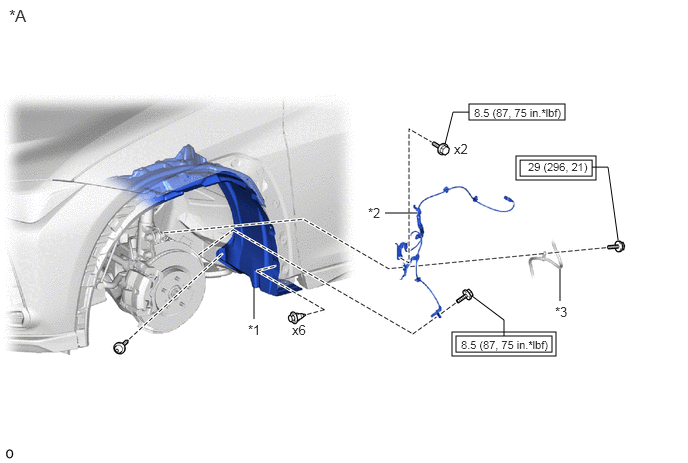

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications [07/2022 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o AVS	-	-
*1	FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY	*2	FRONT SPEED SENSOR
*3	FRONT FLEXIBLE HOSE	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque

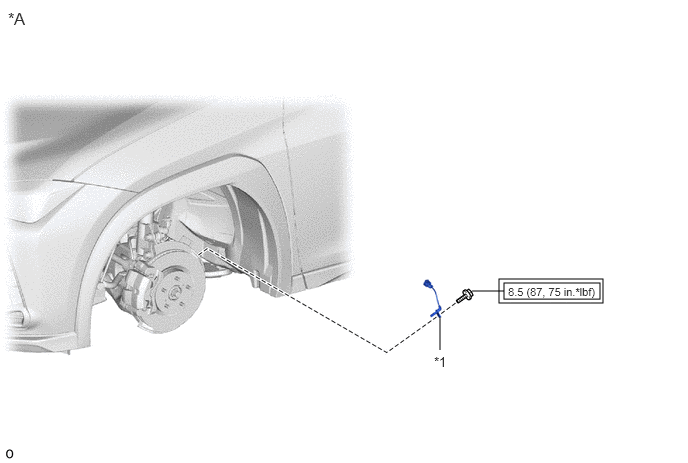

Fig 2: Front Speed Sensor Replacement Components With Torque Specifications [07/2022 - ] (2 Of 2)

*A	w/ AVS	-	-
*1	FRONT SPEED SENSOR	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)	-	-
