Installation [07/2022 - ]: Procedure

  1. INSTALL FRONT SPEED SENSOR (w/o AVS)
    1. Install the front speed sensor to the steering knuckle with the bolt.

      Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

      NOTE:
      • Keep the tip of the front speed sensor and installation hole free of foreign matter.
      • Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt.
      • After installing the front speed sensor to the steering knuckle, make sure that there is no clearance between the front speed sensor stay and steering knuckle. Also make sure that no foreign matter is stuck between the parts.

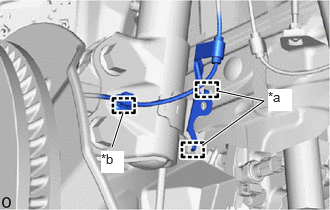

    2. Engage the clamp to the front shock absorber assembly.
      GTY803742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
      *b Clamp
      NOTE:

      Do not twist the front speed sensor wire harness when installing it.

    3. Engage the 2 hooks of front speed sensor clamp to the front shock absorber assembly.
      NOTE:

      Do not twist the front speed sensor wire harness when installing it.

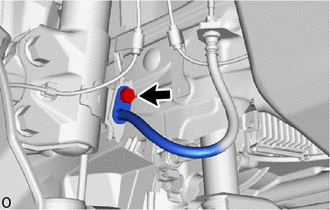

    4. Install the front flexible hose to the front shock absorber assembly with the bolt.

      Torque: 29 N.m (296 kgf/cm, 21 ft.lbf)

      GTY804617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the 2 front speed sensor clamps with the 2 bolts.

      Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

      NOTE:

      Do not twist the front speed sensor wire harness when installing it.

    6. Engage the clamp to the vehicle body.
      NOTE:

      Do not twist the front speed sensor wire harness when installing it.

    7. Engage the clamp to the vehicle body.
      NOTE:

      Do not twist the front speed sensor wire harness when installing it.

    8. Connect the connector.
    9. Return the front fender liner to its original position.
  2. INSTALL FRONT SPEED SENSOR (w/ AVS)
    1. Install the front speed sensor with the bolt.

      Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

    2. Connect the connector.
  3. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY (w/o AVS)
    1. Install the front fender splash shield sub-assenbly LH with the 6 clips.
    2. Using a 5 mm hexagon socket wrench, install the screw.
  4. INSTALL FRONT FENDER MOULDING SUB-ASSEMBLY (w/o AVS)

    Refer to INSTALLATION [10/2018 - ]

  5. INSTALL FRONT WHEEL

    Refer to INSTALLATION [10/2018 - ]

  6. CHECK FOR SPEED SENSOR SIGNAL

    Refer to TEST MODE PROCEDURE [10/2018 - ]
