Removal [07/2022 - ]: Procedure

Refer to REMOVAL [10/2018 - ]

Refer to REMOVAL [10/2018 - ]

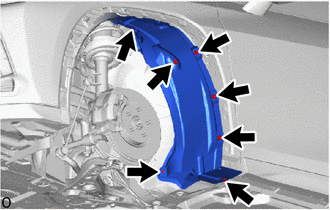

1. Using a 5 mm hexagon socket wrench, remove the screw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 6 clips and separate the front fender splash shield sub-assembly LH.

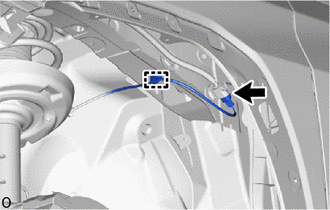

1. Turn back the front fender liner.
2. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Disengage the clamp from the vehicle body.
4. Disengage the clamp from the vehicle body.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

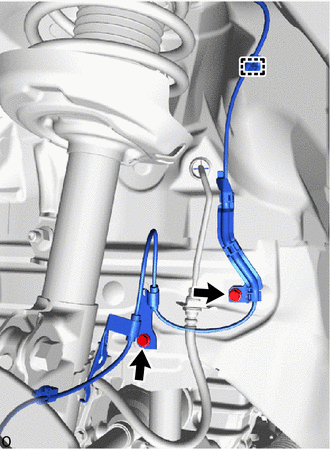

5. Remove the 2 bolts and separate the 2 front speed sensor clamps.
6. Remove the bolt and separate the front flexible hose and front speed sensor clamp from the front shock absorber assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

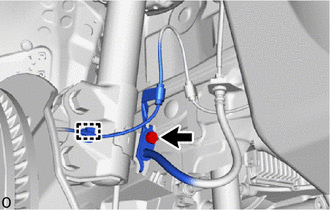

7. Disengage the clamp from the front shock absorber assembly.
8. Remove the bolt and front speed sensor from the steering knuckle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Keep the tip of the front speed sensor and installation hole free of foreign matter.
   • Do not rotate or apply excessive force to the front speed sensor when removing it from the steering knuckle. Rotating or applying excessive force may result in damage to the front speed sensor.

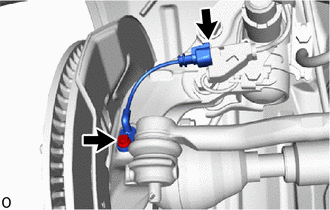

1. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

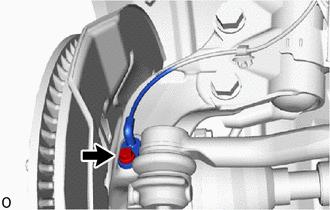

2. Remove the bolt and front speed sensor from the steering knuckle.
   NOTE:

   • Keep the tip of the front speed sensor and installation hole free of foreign matter.
   • Do not rotate or apply excessive force to the front speed sensor when removing it from the steering knuckle. Rotating or applying excessive force may result in damage to the front speed sensor.
