Removal [07/2022 - ]: Procedure

Refer to REMOVAL [07/2022 - ]

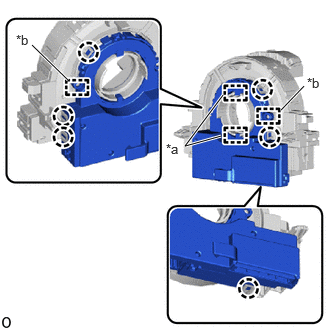

1. Disengage the 6 claws, 2 guides and 2 pins, and remove the steering sensor from the spiral cable sub-assembly.
   NOTE:

   Do not damage the pins of the spiral cable sub-assembly or guides of the steering sensor.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Guide
   *b	Pin
