Removal [10/2018 - 07/2022]: Procedure

  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  2. REMOVE NO. 1 FRONT CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 24

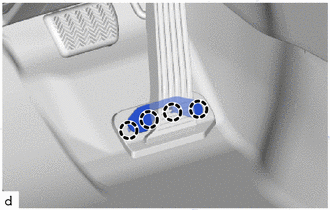

  3. REMOVE ACCELERATOR PEDAL PAD
    1. Disengage the 4 claws to remove the accelerator pedal pad.
      GTY819927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

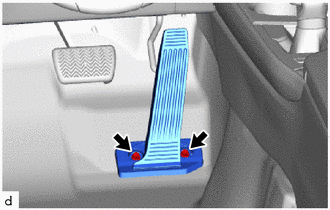

  4. REMOVE ACCELERATOR PEDAL ASSEMBLY
    1. Remove the 2 bolts and accelerator pedal assembly.
      GTY819925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE ACCELERATOR PEDAL(W/SENSOR) ROD ASSEMBLY
    NOTE:
    • Avoid physical shock to the accelerator pedal sensor assembly.
    • Do not disassemble the accelerator pedal sensor assembly.
    • The accelerator pedal sensor assembly does not require lubrication.
    • Do not apply oil or other lubricants to the accelerator pedal sensor assembly. If applied, the accelerator pedal sensor assembly must be replaced.

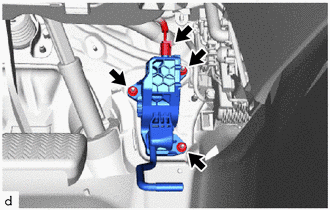

    1. Disconnect the accelerator pedal sensor assembly connector.
      GTY837109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 nuts and accelerator pedal sensor assembly.
      NOTE:

      If the accelerator pedal sensor assembly has been struck or dropped, replace it.
