Components [10/2018 - 07/2022]

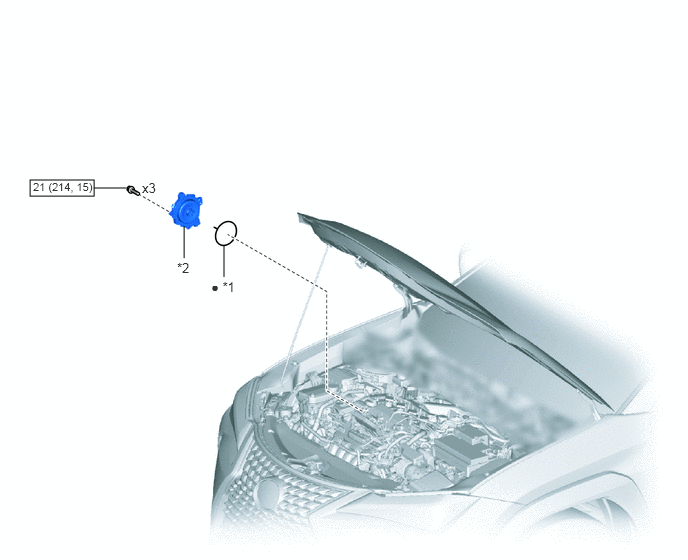

Fig 1: Camshaft Timing Control Motor Replacement Components With Torque Specifications
GTY795010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CAM TIMING CONTROL MOTOR O-RING *2 CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
