Removal [10/2018 - 07/2022]: Procedure

  1. PRECAUTION
    NOTE:
    • After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

      Refer to PRECAUTION [10/2018 - 07/2022]

    • Perform the Vehicle Identification Number (VIN) registration when replacing the ECM.

      Refer to REGISTRATION [10/2018 - 07/2022]

  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [10/2018 - 07/2022]

  3. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 13 Refer to PROCEDURE - Step 13

  4. REMOVE RADIATOR SUPPORT OPENING COVER

    Refer to PROCEDURE - Step 3

  5. REMOVE NO. 1 AIR CLEANER INLET

    Refer to PROCEDURE - Step 11 Refer to PROCEDURE - Step 11

  6. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    See step  4

  7. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  8. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

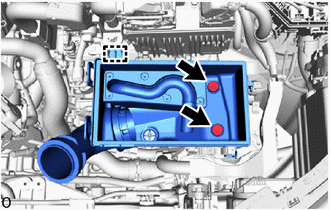

    1. Remove the 2 bolts.
      GTY833226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the air cleaner case sub-assembly.
  9. REMOVE NO. 1 RELAY BLOCK COVER

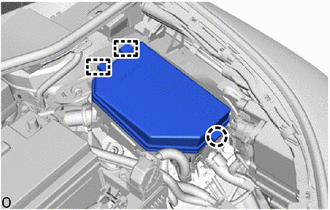

    1. Disengage the claw and 2 guides to remove the No. 1 relay block cover from the engine room relay block.
      GTY802372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE ECM

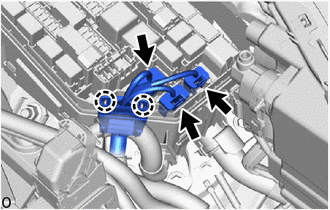

    1. Disconnect the 3 connectors from the engine room relay block.
      GTY802370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws to separate the engine wire from the engine room relay block.

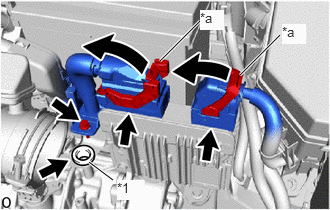

    3. Raise the 2 lock levers while pushing the locks on the levers, and disconnect the 2 ECM connectors.
      GTY787609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Grommet
      *a Lock lever
      NOTE:

      After disconnecting the ECM connectors, make sure that dirt, water or other foreign matter does not contact the connecting parts of the ECM connectors.

    4. Remove the bolt to separate the engine wire.
    5. Remove the grommet.

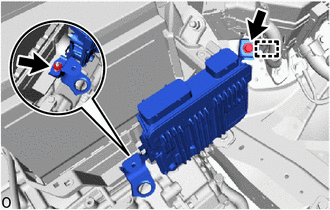

    6. Remove the bolt and nut.
      GTY802640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Disengage the guide to remove the ECM.
      NOTE:

      If the ECM has been struck or dropped, replace it.

  11. REMOVE NO. 2 ECM BRACKET

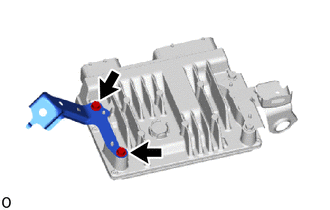

    1. Remove the 2 screws and No. 2 ECM bracket from the ECM.
      GTY802636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 1 ECM BRACKET

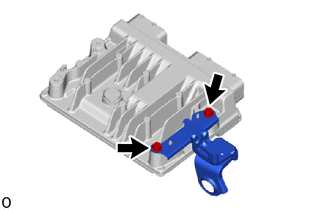

    1. Remove the 2 screws and No. 1 ECM bracket from the ECM.
      GTY833286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
