Components [10/2018 - 07/2022]

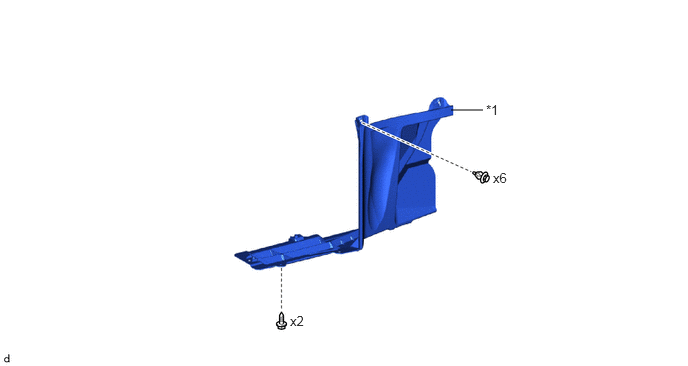

Fig 1: Engine Coolant Temperature Sensor Replacement Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
REAR ENGINE UNDER COVER LH
-
-

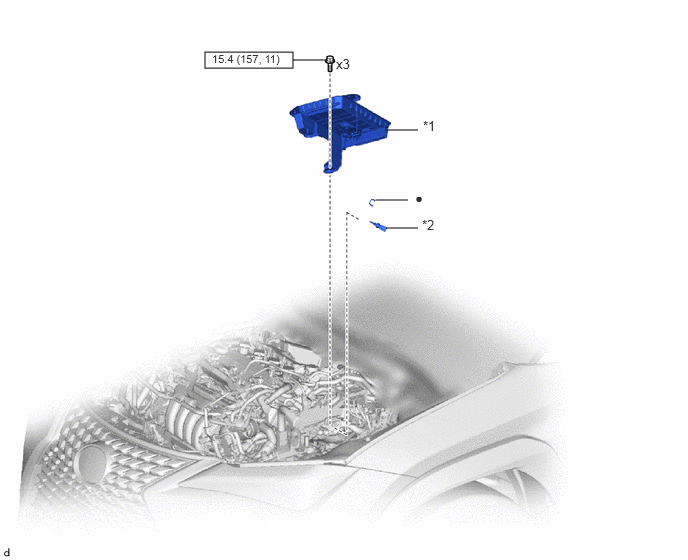

Fig 2: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
BATTERY CLAMP SUB-ASSEMBLY
*2
ENGINE COOLANT TEMPERATURE SENSOR
N*m (kgf*cm, ft.*lbf): Specified torque
•
Non-reusable part
