Removal [10/2018 - 07/2022]: Procedure

  1. REMOVE REAR ENGINE UNDER COVER LH

    Refer to PROCEDURE - Step 1 Refer to PROCEDURE - Step 1

  2. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 2 Refer to PROCEDURE - Step 2

  3. REMOVE ECM

    Refer to REMOVAL [10/2018 - 07/2022]

  4. REMOVE AUXILIARY BATTERY

    Refer to REMOVAL [10/2018 - 07/2022]

  5. REMOVE BATTERY CLAMP SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16 Refer to PROCEDURE - Step 16

  6. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

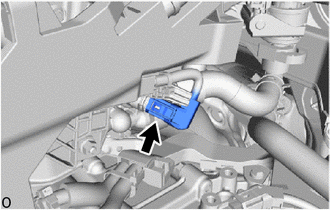

    1. Disconnect the engine coolant temperature sensor connector.
      GTY802651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

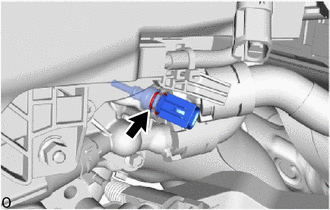

    2. Remove the clip and engine coolant temperature sensor from the water outlet.
      GTY802650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the engine coolant temperature sensor has been struck or dropped, replace it.
