Components [10/2018 - ]

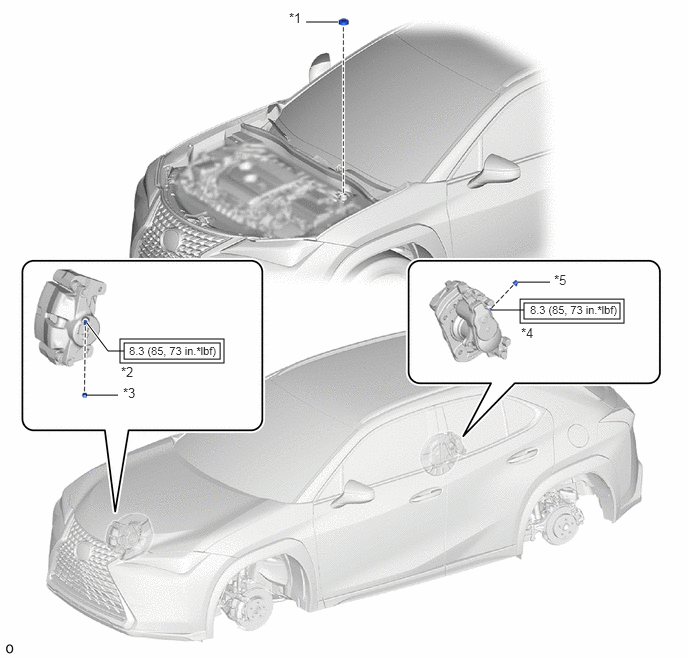

Fig 1: Brake Fluid System (HV) Replacement Components With Torque Specifications
GTY778766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BRAKE MASTER CYLINDER RESERVOIR CAP ASSEMBLY *2 FRONT DISC BRAKE BLEEDER PLUG
*3 FRONT DISC BRAKE BLEEDER PLUG CAP *4 REAR DISC BRAKE BLEEDER PLUG
*5 REAR DISC BRAKE BLEEDER PLUG CAP - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) - -
