Installation [07/2022 - ]: Procedure
- INSTALL FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT NOTE:
- When replacing worn front disc brake pads, the front disc brake anti-squeal shims and front disc brake pad wear indicator plates must be replaced together with the front disc brake pads.
- Do not apply disc brake grease to the lining surface of the brake pad.
- Install the front disc brake pad wear indicator plates in the correct position and direction.
- Install the front disc brake anti-squeal shims in the correct position and direction.

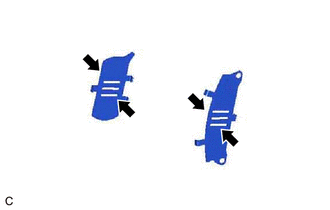

- Apply brake shim grease (Part No. 08887-80409) to both sides of each front No. 1 disc brake anti-squeal shim as shown in the illustration.
- Install the front No. 1 disc brake anti-squeal shim and front No. 2 disc brake anti-squeal shim to each front disc brake pad.

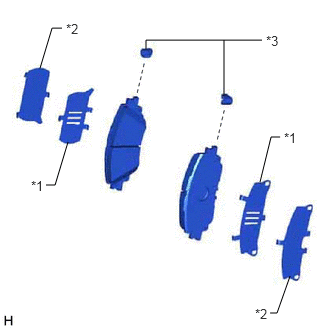

*1 Front No. 1 Disc Brake Anti-squeal Shim *2 Front No. 2 Disc Brake Anti-squeal Shim *3 Front Disc Brake Pad Wear Indicator Plate - Install the front disc brake pad wear indicator plate to each front disc brake pad.
- INSTALL FRONT DISC BRAKE PAD WARNING:

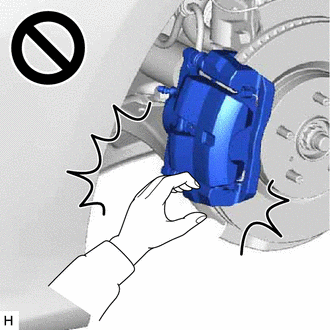

- Be careful not to get pinched by the front disc brake cylinder assembly or other parts when installing the front disc brake pads.
- After lifting up the front disc brake cylinder assembly, secure it in place before performing any work on it.
- The front disc brake cylinder assembly could fall, pinching hands or fingers and causing injury.

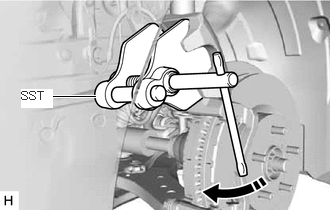

- Using SST, push back the front disc brake piston.
- SST: 09719-77020
NOTE:- Make sure that the brake fluid does not overflow from the reservoir.
- Do not forcibly push in the front disc brake piston.
- Install the 2 front disc brake pads to the front disc brake cylinder mounting.NOTE:
- Keep the friction surfaces of the front disc brake pads and front disc free from oil and grease.
- Install the front disc brake pad so that the pad wear indicator plate is mounted on the upper side of the vehicle.
- Hold the front disc brake cylinder slide pin (lower side) and install the front disc brake cylinder assembly to the front disc brake cylinder mounting with the bolt.
Torque: 34.3 N.m (350 kgf/cm, 25 ft.lbf)
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
- Connect the reservoir level switch connector.
- Connect the cable to the negative (-) auxiliary battery terminal.
Refer to INSTALLATION [10/2018 - ]
- Turn the power switch on (READY).
- Depress the brake pedal and release it.
- Clear the DTCs.
Refer to DTC CHECK / CLEAR [10/2018 - ]
- INSPECT BRAKE FLUID LEVEL IN RESERVOIR
Refer to ON-VEHICLE INSPECTION [10/2018 - ]
- INSTALL FRONT WHEEL
Refer to INSTALLATION [10/2018 - ]
