Components [10/2018 - ]

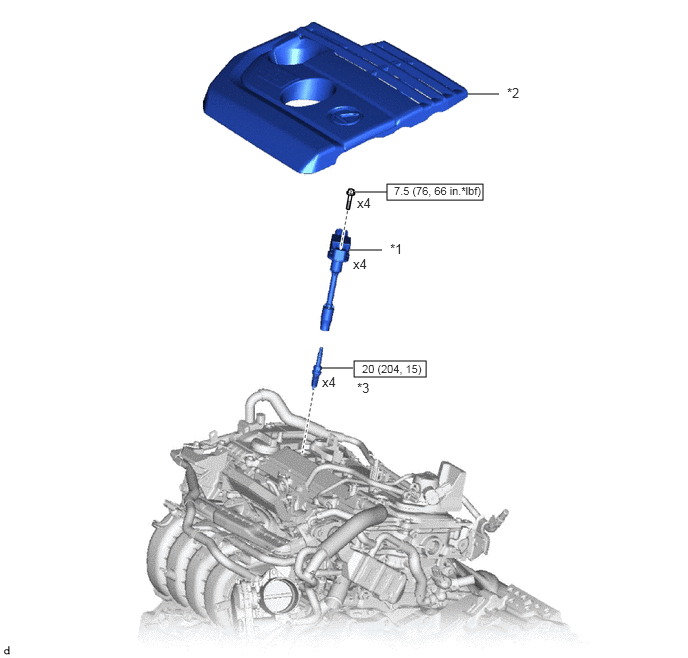

Fig 1: Spark Plug (M20A-FXS) Replacement Components Tightening Sequence
GTY827507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 IGNITION COIL ASSEMBLY *2 NO. 1 ENGINE COVER SUB-ASSEMBLY
*3 SPARK PLUG - -
N.m (kgf/cm, ft.lbf): Specified torque - -
