Components [10/2018 - ]

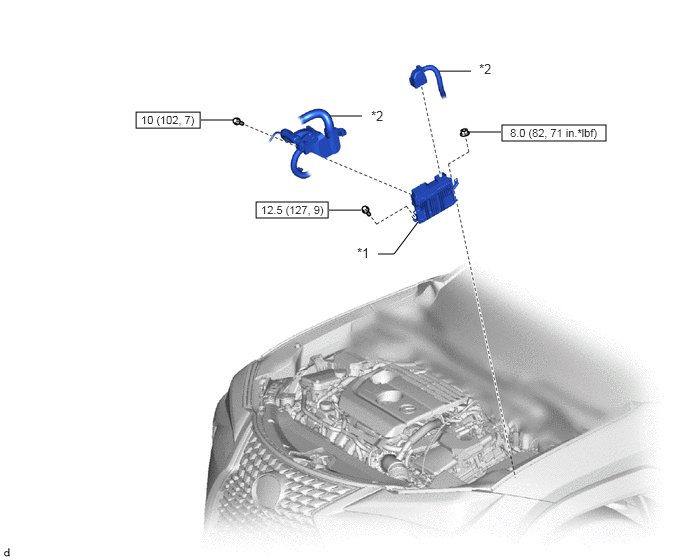

Fig 1: ECM Replacement Components With Torque Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
ECM
*2
ENGINE WIRE
N*m (kgf*cm, ft.*lbf): Specified torque
-
-

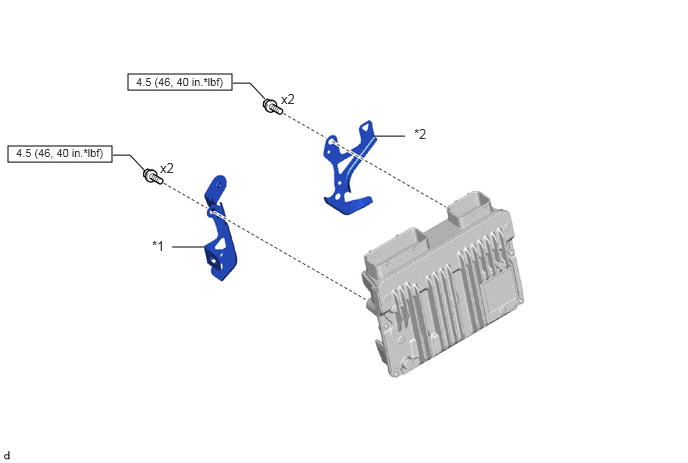

Fig 2: ECM Replacement Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
NO. 1 ECM BRACKET
*2
NO. 2 ECM BRACKET
N*m (kgf*cm, ft.*lbf): Specified torque
-
-
