Components [10/2018 - ]
Fig 1: Throttle Body Replacement Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
REAR ENGINE UNDER COVER LH
-
-

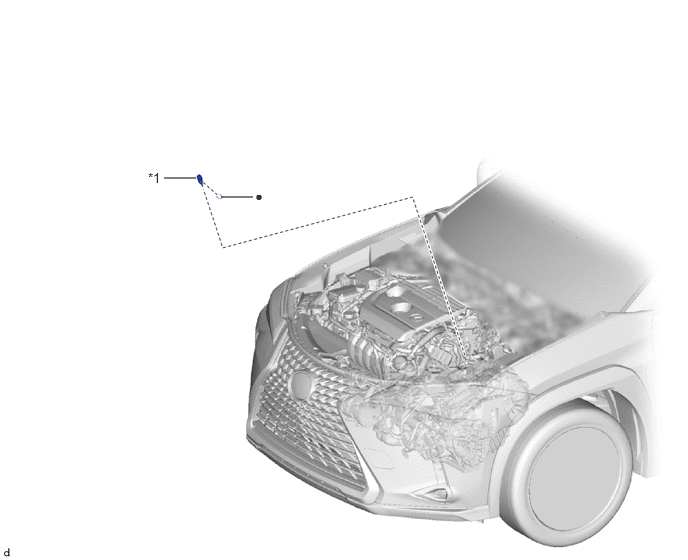

Fig 2: Engine Coolant Temperature Sensor Replacement Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
ENGINE COOLANT TEMPERATURE SENSOR
-
-
•
Non-reusable part
-
-
