Components [08/2020 - ]

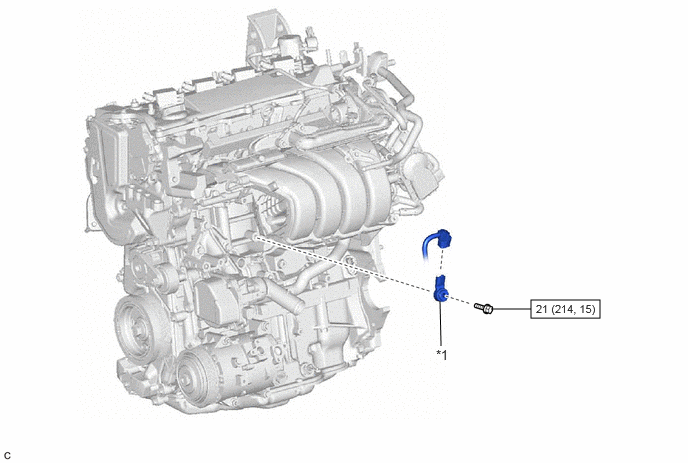

Fig 1: Knock Sensor Replacement Components With Torque Specifications
GTY948397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 KNOCK CONTROL SENSOR - -
N.m (kgf/cm, ft.lbf): Specified torque - -
