Removal [12/2021 - ]: Procedure

  1. DISCONNECT AIR CLEANER CAP

    Refer to PROCEDURE - Step 1

  2. REMOVE FRONT WHEEL LH

    Refer to REMOVAL [12/2021 - ]

  3. REMOVE FRONT SPEED SENSOR LH (w/ Active Height Control)
    NOTE:
    • Keep the tip of the front speed sensor LH and installation hole free of foreign matter.
    • Do not rotate or apply excessive force to the front speed sensor LH when removing it from the steering knuckle. Rotating or applying excessive force may result in damage to the front speed sensor LH.
    1. GTY1067147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

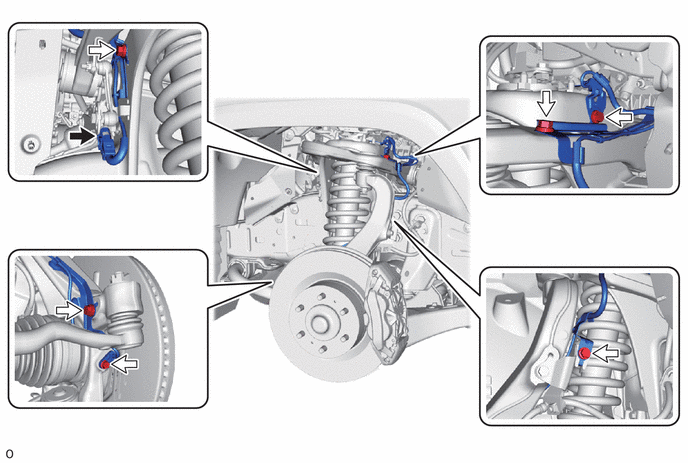

    2. GTY1065609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector Bolt
  4. REMOVE FRONT SPEED SENSOR LH (w/o Active Height Control)
    NOTE:
    • Keep the tip of the front speed sensor LH and installation hole free of foreign matter.
    • Do not rotate or apply excessive force to the front speed sensor LH when removing it from the steering knuckle. Rotating or applying excessive force may result in damage to the front speed sensor LH.
    1. GTY1060003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

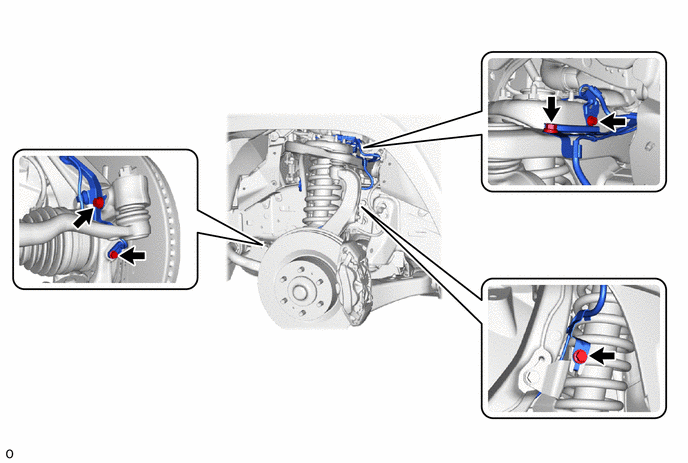

    2. GTY1065522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. w/ AVS:

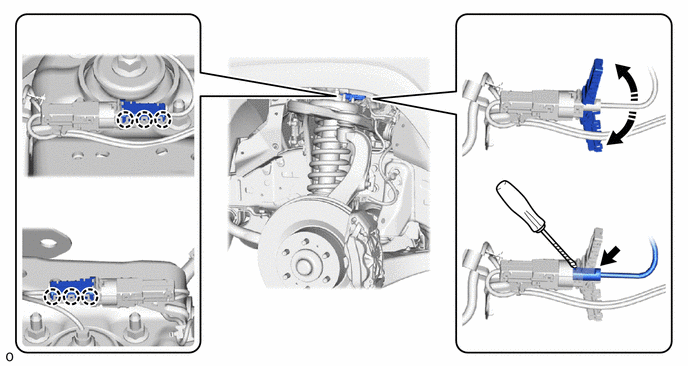

      GTY1065523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT SPEED SENSOR RH (w/ Active Height Control)
    NOTE:
    • Keep the tip of the front speed sensor RH and installation hole free of foreign matter.
    • Do not rotate or apply excessive force to the front speed sensor RH when removing it from the steering knuckle. Rotating or applying excessive force may result in damage to the front speed sensor RH.
    1. GTY1067138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

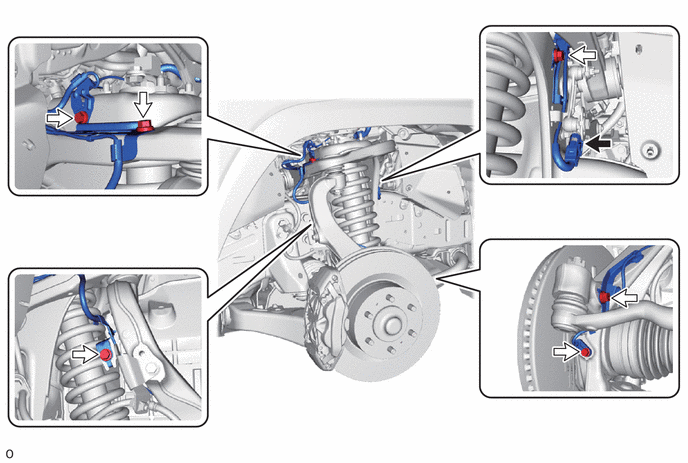

    2. GTY1065274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector Bolt
  6. REMOVE FRONT SPEED SENSOR RH (w/o Active Height Control)
    NOTE:
    • Keep the tip of the front speed sensor RH and installation hole free of foreign matter.
    • Do not rotate or apply excessive force to the front speed sensor RH when removing it from the steering knuckle. Rotating or applying excessive force may result in damage to the front speed sensor RH.
    1. GTY1060002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

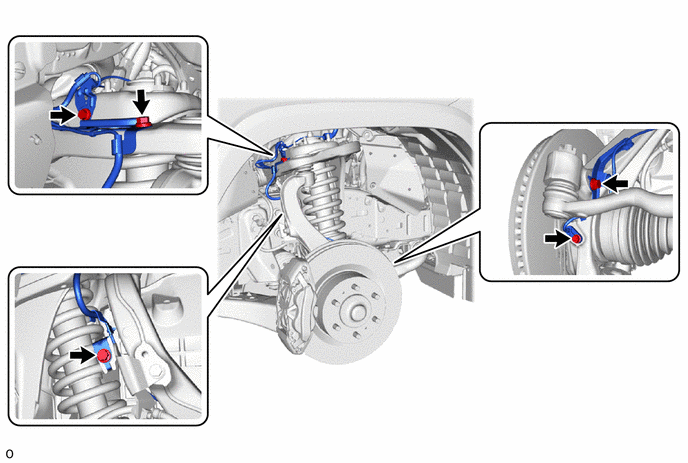

    2. GTY1065553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. w/ AVS:

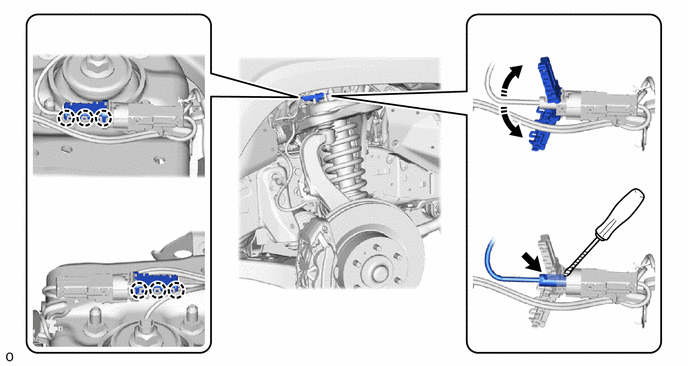

      GTY1065554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
