Inspection [12/2021 - ]: Procedure
- INSPECT KNOCK CONTROL SENSOR
- Measure the resistance according to the value(s) in the table below.

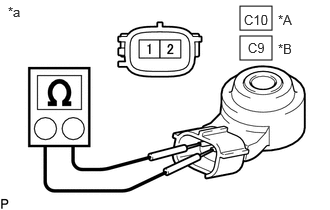

*A for Bank 1 *B for Bank 2 *a Component without harness connected
(Knock Control Sensor)Standard Resistance (for Bank 1)
Tester Connection Condition Specified Condition C10-1 - C10-2 25°C (77°F) 120 to 280 kΩ Standard Resistance (for Bank 2)
Tester Connection Condition Specified Condition C9-1 - C9-2 25°C (77°F) 120 to 280 kΩ If the result is not as specified, replace the knock control sensor.
- Measure the resistance according to the value(s) in the table below.
