Removal [12/2021 - ]: Procedure

  1. REMOVE NO. 2 FUEL DELIVERY PIPE SUB-ASSEMBLY RH

    Refer to REMOVAL [12/2021 - ]

  2. REMOVE NO. 2 FUEL DELIVERY PIPE SUB-ASSEMBLY LH

    Refer to REMOVAL [12/2021 - ]

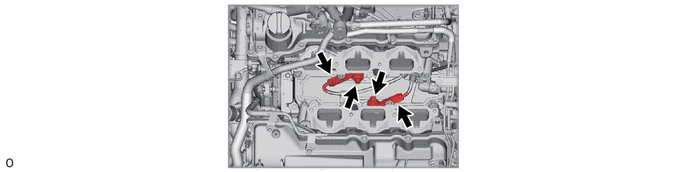

  3. REMOVE KNOCK CONTROL SENSOR
    NOTE:

    If the knock control sensor has been struck or dropped, replace it.
    1. GTY1042358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
