Inspection [12/2021 - ]: Procedure

  1. INSPECT NO. 3 TURBO PRESSURE SENSOR
    1. Measure the resistance according to the value(s) in the table below.

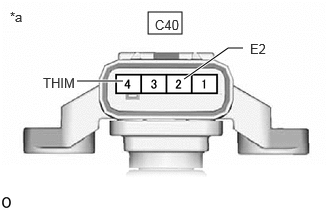

      GTY1074731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (No. 3 Turbo Pressure Sensor)

      Standard Resistance

      Tester Connection Condition Specified Condition
      C40-4 (THIM) - C40-2 (E2) -20°C (-4°F) 13.8 to 18.6 kΩ
      20°C (68°F) 2.09 to 2.81 kΩ
      80°C (176°F) 0.274 to 0.37 kΩ

      If the result is not as specified, replace the No. 3 turbo pressure sensor.
