Inspection [12/2021 - ]: Procedure
- INSPECT THROTTLE WITH THROTTLE POSITION SENSOR BODY ASSEMBLY
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

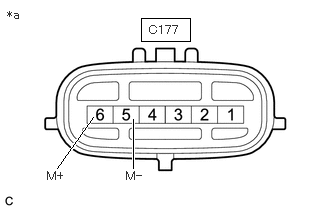

Tester Connection Condition Specified Condition C177-5 (M-) - C177-6 (M+) 20°C (68°F) 0.3 to 100 Ω *a Component without harness connected
(throttle with throttle position sensor body assembly)If the result is not as specified, replace the throttle with throttle position sensor body assembly.
- Measure the resistance according to the value(s) in the table below.
