Removal [12/2021 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    See step  1

  2. REMOVE TURBO PRESSURE SENSOR (w/ Canister Pump Module)

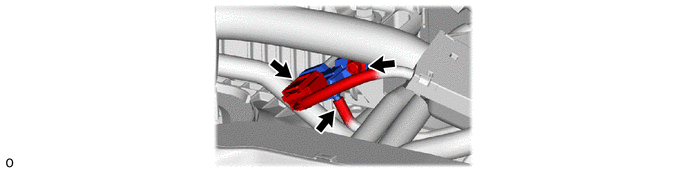

    1. GTY1042437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

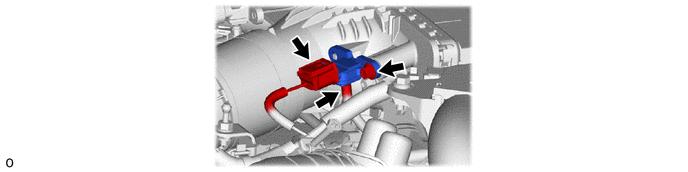

    2. GTY1042436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 TURBO PRESSURE SENSOR (w/o Canister Pump Module)
    1. GTY1042437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY1042436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 1 TURBO PRESSURE SENSOR (w/ Canister Pump Module)

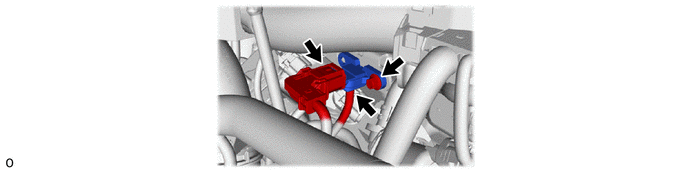

    1. GTY1042061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
