Inspection [12/2021 - ]: Procedure
- INSPECT ECO RUN CANCEL SWITCH ASSEMBLY
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

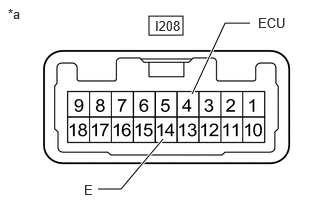

Tester Connection Switch Condition Specified Condition I208-4 (ECU) - I208-14 (E) Power back door control switch (eco run cancel switch assembly) being pushed and held Below 1 Ω Power back door control switch (eco run cancel switch assembly) not pushed 10 kΩ or higher *a Component without harness connected
Power Back Door Control Switch (Eco Run Cancel Switch Assembly)If the result is not as specified, replace the power back door control switch (eco run cancel switch assembly).
- Apply battery voltage between the terminals of the switch, and check the illumination condition of the power back door control switch (eco run cancel switch assembly).
OK

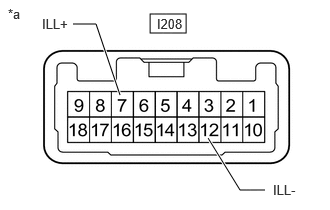

Measurement Condition Specified Condition Battery positive (+) → I208-7 (ILL+)
Battery negative (-) → I208-12 (ILL-)Illuminates If the result is not as specified, replace the power back door control switch (eco run cancel switch assembly).
*a Component without harness connected
Power Back Door Control Switch (Eco Run Cancel Switch Assembly)
- Measure the resistance according to the value(s) in the table below.
