Removal [03/2022 - ]: Procedure

Refer to REMOVAL [11/2021 - ]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

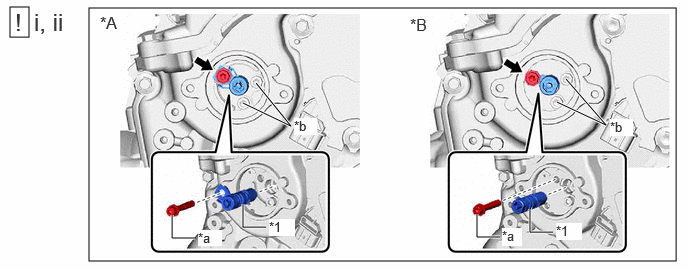

   *A	Type A	*B	Type B
   *1	Camshaft Timing Valve Assembly	-	-
   *a	Bolt	*b	Do not remove

   1. Using a 5 mm hexagon socket wrench, remove the bolt.
      NOTE:

      Do not remove the other 2 bolts.

      HINT:

      If it is difficult to loosen the bolt due to the tools contacting the vehicle body or other parts, rotate the crankshaft to move the bolt to a position where it can be removed easily.

   2. Remove the camshaft timing valve assembly from the camshaft timing exhaust gear assembly.
      NOTE:

      If the camshaft timing valve assembly has been struck or dropped, replace it.
