Removal [11/2021 - ]: Procedure

  1. DRAIN ENGINE COOLANT

    Refer to REPLACEMENT [11/2021 - ]

  2. REMOVE BATTERY

    Refer to REMOVAL [11/2021 - ]

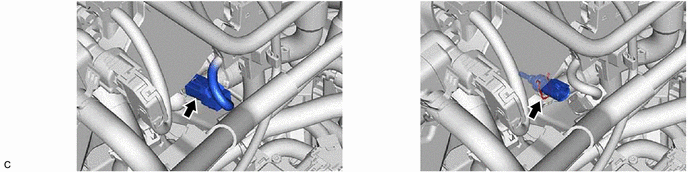

  3. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
    NOTE:

    If the engine coolant temperature sensor has been struck or dropped, replace it.
    1. GTY1077503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
