Removal [11/2021 - ]: Procedure

  1. DRAIN ENGINE COOLANT

    Refer to REPLACEMENT [11/2021 - ]

  2. REMOVE RADIATOR UPPER AIR GUIDE PLATE

    Refer to PROCEDURE - Step 1 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 1 [03/2024 - ]

  3. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 23 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 23 [03/2024 - ]

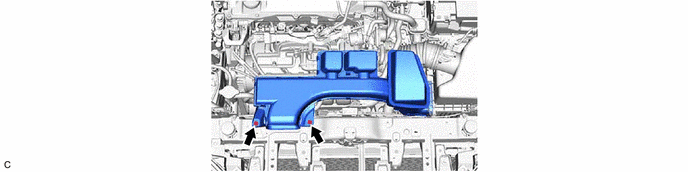

  4. REMOVE INLET AIR CLEANER ASSEMBLY
    1. GTY1076702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

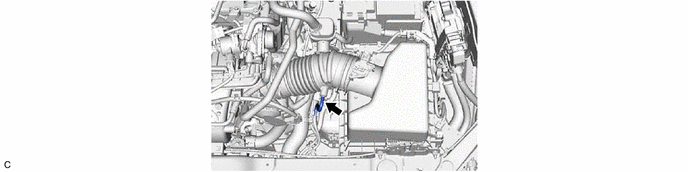

  5. DISCONNECT VACUUM HOSE
    1. GTY1077486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

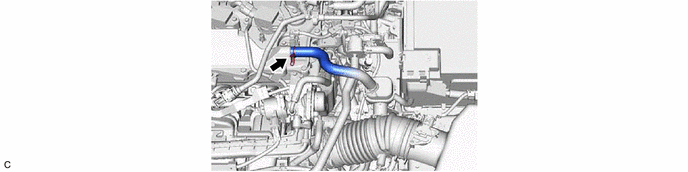

  6. DISCONNECT NO. 2 VENTILATION HOSE
    1. GTY1077485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

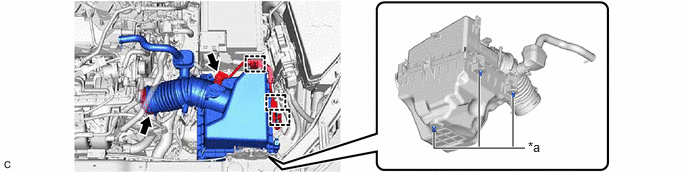

  7. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE
    1. GTY1076263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pin - -
  8. DISCONNECT NO. 6 WATER BY-PASS HOSE
    1. GTY1076691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. SEPARATE THROTTLE BODY WITH MOTOR ASSEMBLY
    1. GTY1077331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the throttle body with motor assembly connector.
      2. Using an 8 mm socket wrench, remove the 3 bolts and separate the throttle body with motor assembly from the intake manifold.

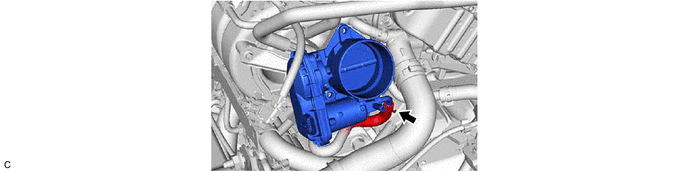

  10. DISCONNECT NO. 5 WATER BY-PASS HOSE
    NOTE:

    If the throttle body with motor assembly has been struck or dropped, replace it.
    1. GTY1076689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

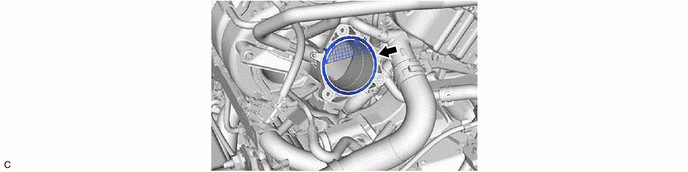

  11. REMOVE THROTTLE BODY GASKET
    1. GTY1077478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
