Removal [11/2021 - ]: Procedure

PRECAUTION

NOTE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2

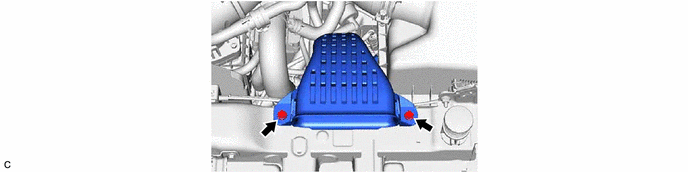

REMOVE RADIATOR UPPER AIR GUIDE PLATE
Refer to PROCEDURE - Step 1 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 1 [03/2024 - ]

REMOVE INLET AIR CLEANER ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

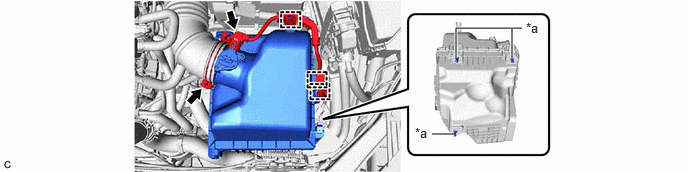

REMOVE AIR CLEANER ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE ECM

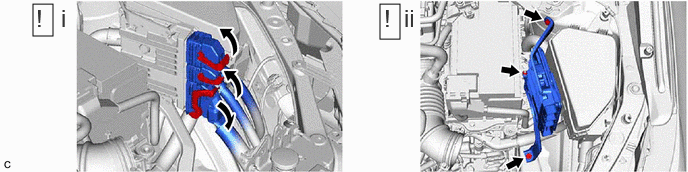

Rotate the 3 levers while pushing the locks, and disconnect the 3 ECM connectors.
NOTE:
After disconnecting the ECM connectors, make sure that dirt, water or other foreign matter does not contact the connecting parts of the ECM connectors.
Remove the 2 bolts, nut and ECM.
NOTE:
If the ECM has been struck or dropped, replace it.

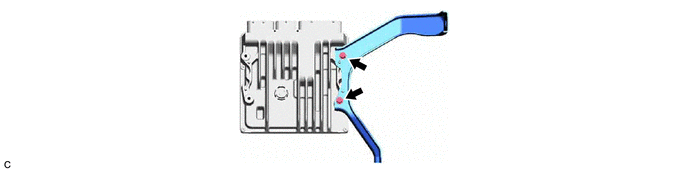

REMOVE NO. 1 ECM BRACKET

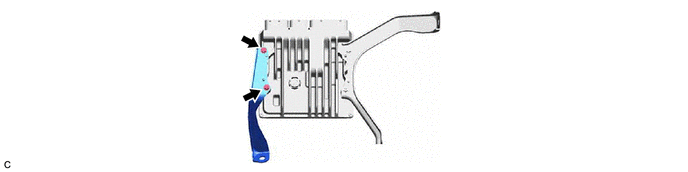

REMOVE NO. 2 ECM BRACKET
