Removal [11/2021 - ]: Procedure

  1. REMOVE GENERATOR ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  2. DISCONNECT WIRE HARNESS

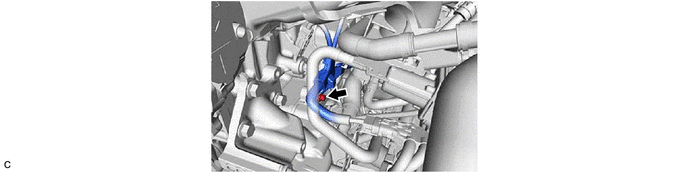

    1. GTY1076401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE KNOCK CONTROL SENSOR
    NOTE:

    If the knock control sensor has been struck or dropped, replace it.

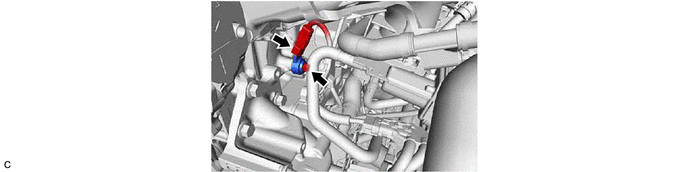

    1. GTY1076404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
