On-Vehicle Inspection [11/2021 - ]: Procedure

  1. INSPECT NO. 2 TURBO PRESSURE SENSOR
    1. Check the terminal voltage.
      1. Disconnect the No. 2 turbo pressure sensor connector.
      2. Measure the voltage according to the value(s) in the table below.

        Standard Voltage

        Tester Connection Condition Specified Condition
        B72-3 (VC) - B72-2 (E2) Ignition switch ON 4.5 to 5.5 V
        B72-1 (PTA) - B72-2 (E2) 3.0 to 5.5 V

        If the result is not as specified, repair or replace the wire harness or connector.

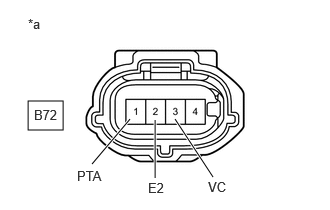

        GTY1079072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Front view of wire harness connector
        (to No. 2 Turbo Pressure Sensor)
    2. Check the turbo pressure.
      1. Turn the ignition switch to ON.
      2. According to the display on the GTS read the Data List.

        Powertrain > Engine > Data List

        Tester Display
        Boost Pressure Sensor

        OK

        The value is approximately equal to atmospheric pressure.

        HINT:

        • Standard atmospheric pressure is approximately 101 kPa (abs) (15 psi (abs)).
        • For every 100 m (328 ft) increase in altitude, atmospheric pressure drops by approximately 1 kPa (0.15 psi). This varies by weather.
