Removal [11/2021 - ]: Procedure

  1. REMOVE INTERCOOLER ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  2. REMOVE NO. 2 AIR TUBE

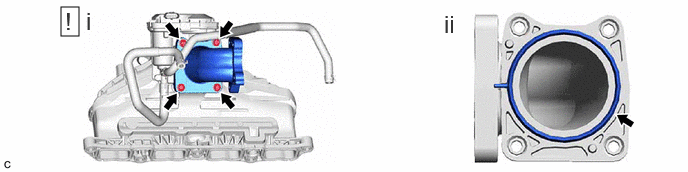

    1. GTY1077117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, remove the 4 bolts and No. 2 air tube from the throttle body with motor assembly and intake manifold.
      2. Remove the throttle body gasket from the No. 2 air tube.
  3. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY
    NOTE:

    If the throttle body with motor assembly has been struck or dropped, replace it.

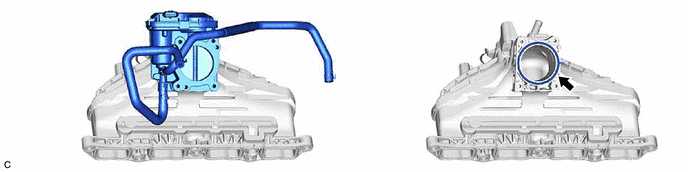

    1. GTY1076199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 4 WATER BY-PASS HOSE

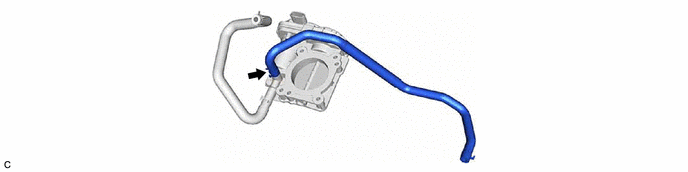

    1. GTY1076215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 5 WATER BY-PASS HOSE

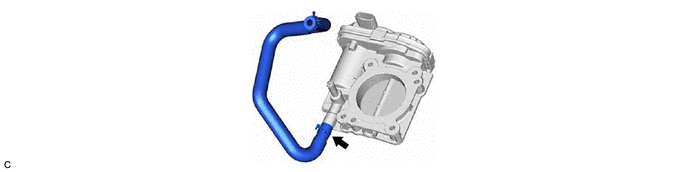

    1. GTY1076179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
