Removal [11/2021 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 25 [11/2021 - 03/2023] , or refer to PROCEDURE - Step 25 [03/2023 - 03/2024] , or refer to PROCEDURE - Step 25 [03/2024 - ]

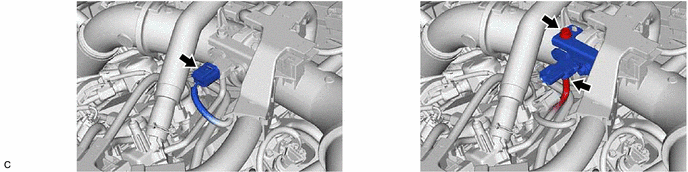

  2. REMOVE VACUUM SENSOR ASSEMBLY
    1. GTY1077328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
