Removal [12/2021 - ]: Procedure

  1. REMOVE FRONT WHEEL

    Refer to REMOVAL [12/2021 - ]

  2. REMOVE FRONT FENDER APRON TRIM PACKING D

    Refer to PROCEDURE - Step 18

  3. REMOVE FRONT FENDER APRON TRIM PACKING C

    Refer to PROCEDURE - Step 17

  4. REMOVE BRAKE TUBE HEAT INSULATOR

    Refer to PROCEDURE - Step 10

  5. REMOVE FRAME UNDER COVER ASSEMBLY LH

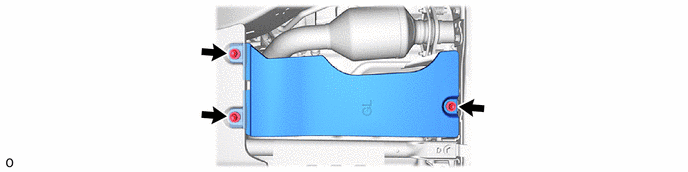

    GTY1081089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRAME UNDER COVER ASSEMBLY RH

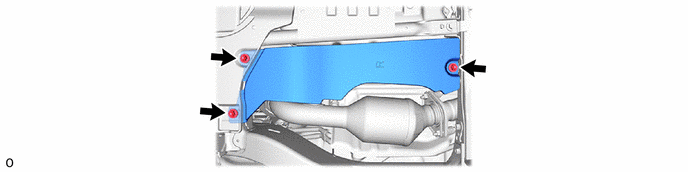

    GTY1081115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE AIR FUEL RATIO SENSOR

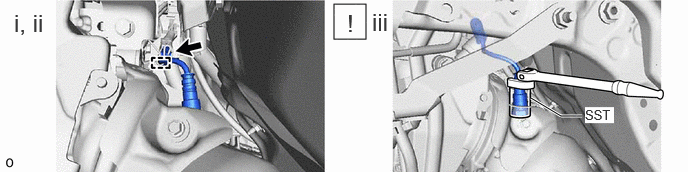

    1. GTY1081396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the air fuel ratio sensor connector.
      2. Detach the wire harness clamp.
      3. Using SST, remove the air fuel ratio sensor from the converter with catalyst assembly LH.
        • SST: 09224-00012
  8. REMOVE NO. 2 AIR FUEL RATIO SENSOR

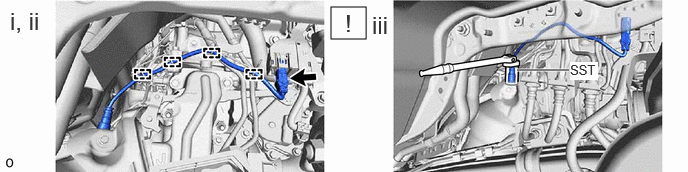

    1. GTY1080623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the No. 2 air fuel ratio sensor connector.
      2. Detach the 4 wire harness clamps.
      3. Using SST, remove the No. 2 air fuel ratio sensor from the converter with catalyst assembly RH.
        • SST: 09224-00012
  9. REMOVE NO. 3 AIR FUEL RATIO SENSOR

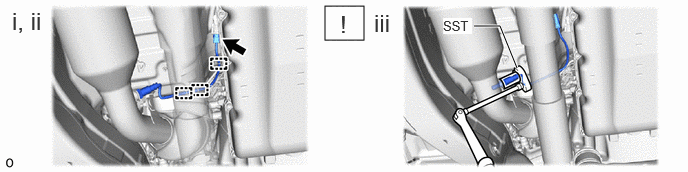

    1. GTY1080565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the No. 3 air fuel ratio sensor connector.
      2. Detach the 3 wire harness clamps.
      3. Using SST, remove the No. 3 air fuel ratio sensor from the converter with catalyst assembly LH.
        • SST: 09224-00012
  10. REMOVE NO. 4 AIR FUEL RATIO SENSOR

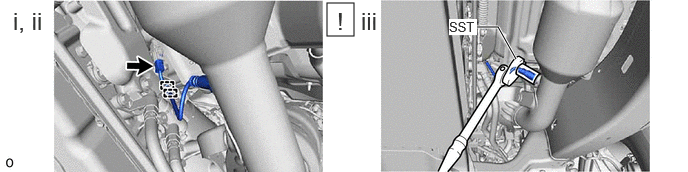

    1. GTY1081284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the No. 4 air fuel ratio sensor connector.
      2. Detach the 2 wire harness clamps.
      3. Using SST, remove the No. 4 air fuel ratio sensor from the converter with catalyst assembly RH.
        • SST: 09224-00012
