Caution / Notice / Hint

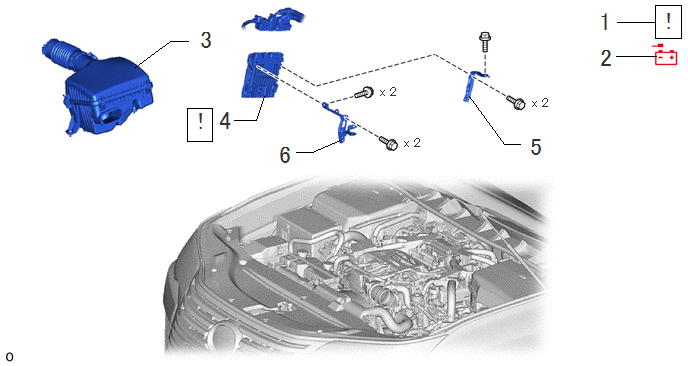

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during ECM removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| ECM | Update ECU security key | Vehicle control history (RoB) are stored | Refer to UPDATE ECU SECURITY KEY [12/2021 - ] |
| The Vehicle Identification Number (VIN) or frame number registration | DTC P0630-51 is output | w/ Canister Pump Module: Refer to REGISTRATION [12/2021 - ] w/o Canister Pump Module: Refer to REGISTRATION [12/2021 - ] |
|
|
- | w/ Canister Pump Module: Refer to REGISTRATION [12/2021 - ] w/o Canister Pump Module: Refer to REGISTRATION [12/2021 - ] |
|
| Switch specification information | Vehicle control history (RoB) are stored | w/ Canister Pump Module: Refer to INITIALIZATION [12/2021 - ] w/o Canister Pump Module: Refer to INITIALIZATION [12/2021 - ] |
|
| Perform code registration | Engine start | Refer to REGISTRATION [12/2021 - ] |
HINT:
When the cable is disconnected/reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- Learning completes when vehicle is driven
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link Stop and start system Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). Refer to PRECAUTION [12/2021 - 10/2023] , or refer to PRECAUTION [10/2023 - ] Lighting system (EXT) Cornering lights Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. Refer to INITIALIZATION [12/2021 - ] Pre-collision system Lane tracing assist system Adaptive high beam system
- Learning completes when vehicle is operated normally
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link Power back door system Fully close the back door by hand.
HINT:
Initialization is not necessary if the above procedures are performed while the back door is closed.Refer to INITIALIZATION [12/2021 - ] Air conditioning system After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized. -
