Caution / Notice / Hint
NOTE:
This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Refer to PRECAUTION [12/2021 - ]

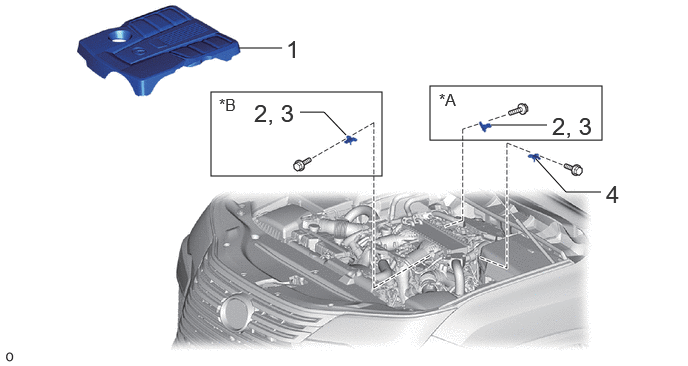

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | V-BANK COVER SUB-ASSEMBLY | 11209 | - | - | - |
| 2 | TURBO PRESSURE SENSOR (w/ Canister Pump Module) | 89421A | - | - | - |
| 3 | NO. 1 TURBO PRESSURE SENSOR (w/o Canister Pump Module) | 89421K | - | - | - |
| 4 | NO. 1 TURBO PRESSURE SENSOR (w/ Canistor Pump Module) | 89421K | - | - | - |
| *A | Bank 1 | *B | Bank 2 |
