Removal [11/2021 - ]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2
- REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 23 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 23 [03/2024 - ] - DISCONNECT NO. 2 EARTH WIRE
See step 2
- REMOVE NO. 2 ENGINE COVER
Refer to PROCEDURE - Step 2 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 2 [03/2022 - 03/2024] , or refer to PROCEDURE - Step 2 [03/2024 - ]

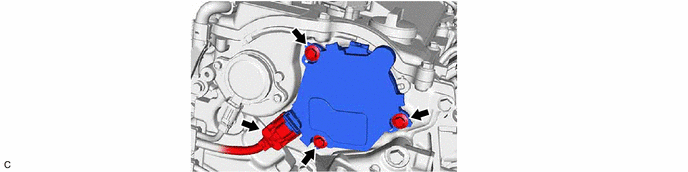

- REMOVE CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY NOTE:
If the cam timing control motor with EDU assembly has been struck or dropped, replace it.

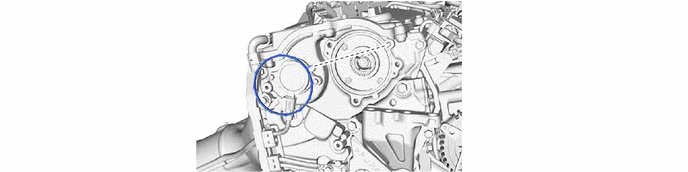

- REMOVE CAM TIMING CONTROL MOTOR O-RING
