Removal [03/2024 - ]: Procedure

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
- for A25A-FKS:
  Refer to PROCEDURE - Step 2
- for T24A-FTS:
  Refer to PROCEDURE - Step 2
REMOVE FRONT BUMPER ASSEMBLY
- for Sport Package:
  Refer to REMOVAL [03/2024 - ]
- except Sport Package:
  Refer to REMOVAL [03/2024 - ]

REMOVE ECO RUN VEHICLE CONVERTER ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

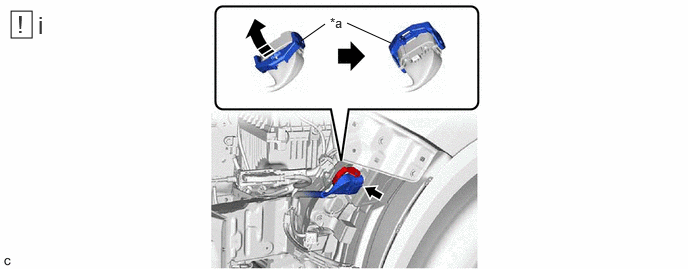

Lock Lever

While pushing the lock of the lock lever, move the lock lever as shown in the illustration, and them disconnect the eco run vehicle converter assembly connector.
