Inspection [10/2022 - ]: Procedure
- INSPECT CAM TIMING OIL CONTROL SOLENOID ASSEMBLY
- Check the resistance.
- Measure the resistance according to the value(s) in the table below.

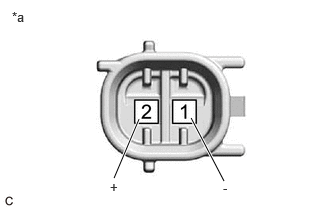

*a Component without harness connected
(Cam Timing Oil Control Solenoid Assembly)Standard Resistance
Tester Connection Condition Specified Condition Result 1 (-) - 2 (+) 0°C (32°F) 6.3 to 7.3 Ω Ω 1 (-) - 2 (+) 20°C (68°F) 6.9 to 7.9 Ω Ω 1 (-) - 2 (+) 40°C (104°F) 7.4 to 8.6 Ω Ω If the result is not as specified, replace the cam timing oil control solenoid assembly.
- Measure the resistance according to the value(s) in the table below.
- Stroke Amount Inspection
- Using vernier calipers, measure length (A) and (B) with the shaft of the cam timing oil control solenoid assembly set in the respective positions shown in the illustration.NOTE:
Do not apply auxiliary battery voltage to the terminals of the cam timing oil control solenoid assembly.
HINT:
If the shaft does not extend under its own weight, extend the shaft with your fingers.
*a Shaft Side Facing Down *b Shaft Side Facing Up *c Shaft - Calculate the stroke amount based on the difference of length (A) and (B).
Standard
Specified Condition Result 4.3 mm or higher
0.169 in. or highermm
in.HINT:
Stroke amount = length (A) - length (B)
If the value is not as specified, replace the cam timing oil control solenoid assembly.
- Using vernier calipers, measure length (A) and (B) with the shaft of the cam timing oil control solenoid assembly set in the respective positions shown in the illustration.
- Check the resistance.
